Product
Di-soric
202452
USE 46 K 1500 PSKT-TSSL
Request a Quote
Image copyright: Di-soric

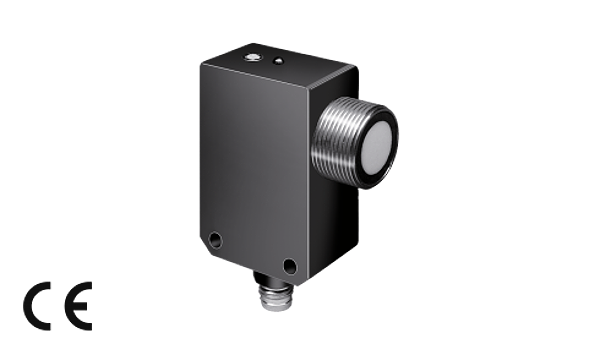

Di-soric 202452
USE 46 K 1500 PSKT-TSSL
Ultrasonic Through Beam Sensor, Receiver
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Without blind zone. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. High operating frequency. On-delay time adjustable
Downloads
Technical parameters
| Operating principle: | Ultrasonic through beam sensor |
| Evaluation: | digital |
| Size: | 46 x 30 x 18 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 18 ... 30 V DC |
| No-load current: | 17 mA |
| Operating distance: | 0 ... 1500 mm |
| Switching output: | pnp, 100 mA, NO |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 200 Hz |
| Response-/release time: | / 3,0 ms |
| On-delay time (Trig.): | 3 ... 400 ms, Adjustable at receiver |
| Ambient temperature, operation: | -20 … +50 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | stainless steel, plastics V2A (1.4301 / AISI 304), (Polyamide - PA) |
| Connection: | Connector, M8, 3-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
