201460

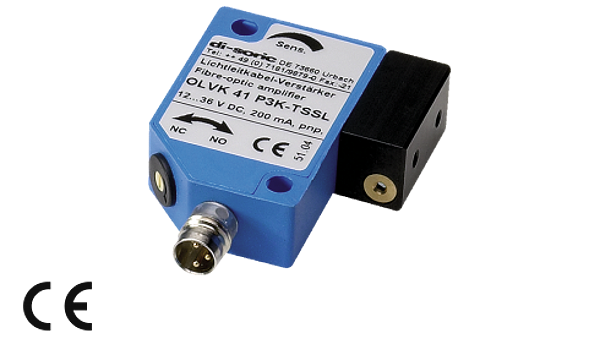

OLVK 41 P3K-TSSL
Amplifier for plastic fiber optics
Compact plastic casing. Easy-to-install. Red light. Sensitivity adjustable. High operating frequency. Light/dark switching. Protection against short-circuit and reverse polarity
Amplifier for: | Plastic fiber optics 2x2,2 mm |
Evaluation: | digital |
Emitted light: | Red, 660 nm, clocked |
Service voltage: | 12 ... 35 V DC |
No-load current: | < 36 mA |
Sensitivity adjustment: | potentiometer |
Switching output: | pnp, 200 mA, NO/NC, switchable |
Switching hysteresis: | < 15 % |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,0 V |
Switching frequency: | 750 Hz |
Response-/release time: | 0,10 ms / 2,0 ms |
Ambient temperature, operation: | 0 … +60 °C |
Temperature drift: | 0,3 %/K |
Ambient light immunity: | 30 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 65 |
Casing material: | polyester |
Connection: | Connector, M8, 3-poled |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.03 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
