Product
Di-soric
200484
DCCK 18 M 10/10 AIK-IBS
Request a Quote

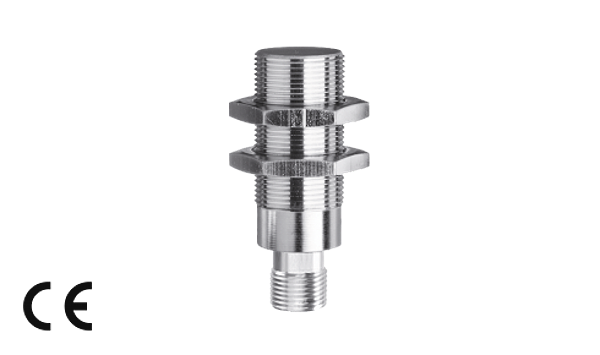

Image copyright: Di-soric
Di-soric 200484
DCCK 18 M 10/10 AIK-IBS
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Analog voltage output. Analog currant output. Metal plug. Integrated amplifier. Short-circuit protection
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | analog |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Mounting: | quasi-flush |
| Characteristics: | extremely high operating distance |
| Operating distance: | 0 … 10 mm |
| Standardized measuring plate: | 30 x 30 x 1 mm |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | < 12 mA |
| Analog output: | 0 ... 10 V, 4 ... 20 mA |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 500 Hz |
| Reproducibility: | ± 0,02 mm (TA = constant) / 0,3 mm (23°C ± 5°C) |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | brass nickel plated |
| Connection: | Connector, M12 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
