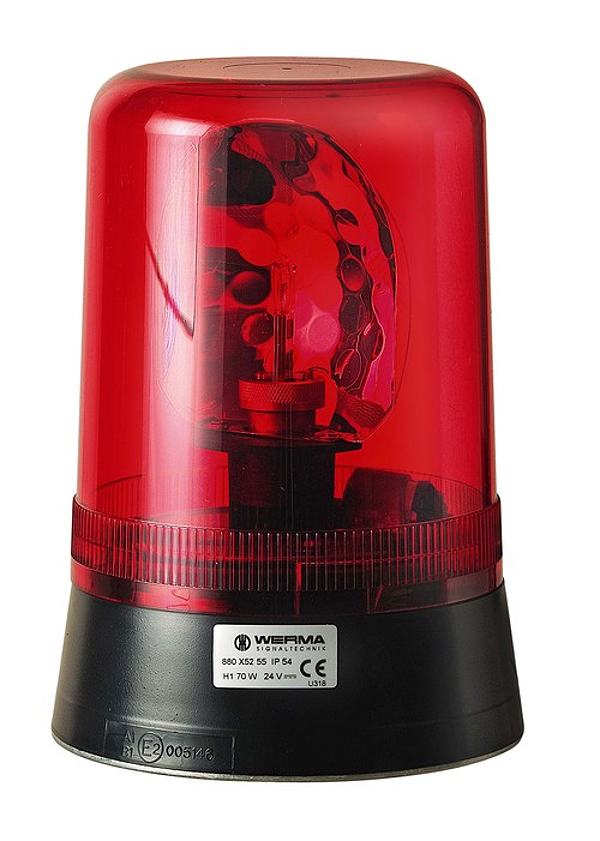

Werma 88015255
Rotating Mirror Beacon BM 24VDC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High intensity optical signal with halogen bulb, e? approval for automotive use (yellow, 24 V)
Technical parameters
| Height: | 215 mm |
| Diameter: | 152 mm |
| Materials: | ABS PMMA |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP54 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 8 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 1102 g |
| Product weight: | 990 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 3000 mA |
| Rated inrush current: | 10.000 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | halogen bulb |
| Light colour: | Red |
| Service life optical: | 2,000 h minimum |
| Rotation frequency (rpm): | 170 U/min |
