Product
Werma
83912055
Request a Quote
Image copyright: Werma

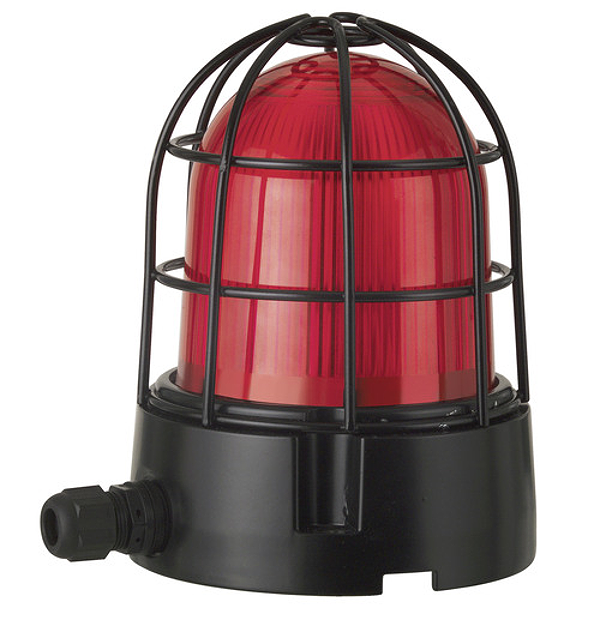

Werma 83912055
LED Rotating Beacon BM 24VDC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust aluminium housing including wire guard, salt water resistant. Wear-free due to the absence of any moving mechanical components. Intense rotating signal effect with low power consumption
Technical parameters
| Height: | 189 mm |
| Diameter: | 153 mm |
| Materials: | Aluminium PC |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP66 IP67 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 6 mm |
| Cable entry maximum: | d = 13 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 1379 g |
| Product weight: | 1229 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 150 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 1 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Revolving |
| Service life optical: | 50,000 h maximum |
| Rotation frequency (rpm): | 180 U/min |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
