8937920000
MOS 5VTTL/24VDC 0,1A
Request a Quote
Image copyright: Weidmueller

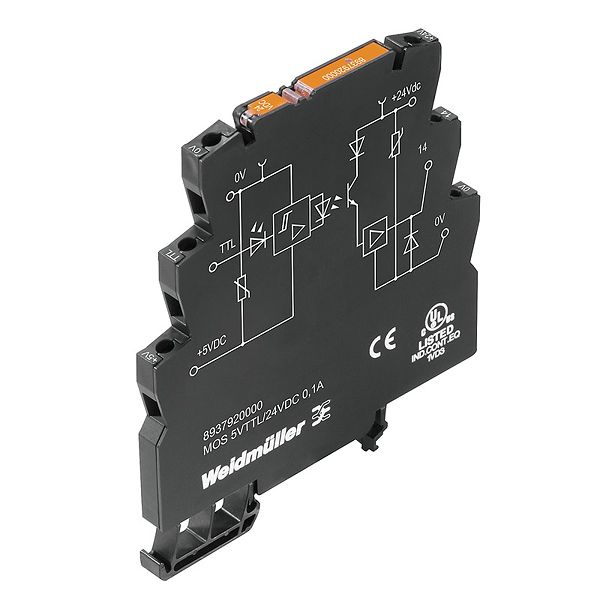

Weidmueller 8937920000
MOS 5VTTL/24VDC 0,1A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MOS 5VTTL/24VDC 0,1A |
| Order No.: | 8937920000 |
| Version: | MICROOPTO, solid-state relais, 1 NO contact (Bipolar transistor), Rated control voltage: 5 V TTL , Rated switching voltage: 24 VDC ±20%, Continuous current: 100 mA, Screw connection |
| GTIN (EAN): | 4032248716159 |
| Qty.: | 1 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 88.1 mm |
| Height (inches): | 3.468 inch |
| Depth: | 97.8 mm |
| Depth (inches): | 3.85 inch |
| Net weight: | 34.8 g |
| Humidity: | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| MTTF: | 1,686 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 5 V TTL |
| Nominal control current: | < 100 µA |
| Power rating: | < 0.5 mW |
| Cut-in / dropout voltage: | 2 V / 1 V DC |
| Status indicator: | Green LED |
| Protective circuit: | Varistor, Reverse polarity protection |
| Nominal auxiliary voltage: | 5 V DC ± 5 % / HIGH: max. 9 mA, LOW: max 400 µA |
| Rated switching voltage: | 24 VDC ±20% |
| Continuous current: | 100 mA |
| Load category: | LC A |
| Switch-on delay: | < 1.3 µ |
| Switch-off delay: | < 1 µs |
| Voltage drop at max. load: | < 1 V |
| Leakage current: | < 20 µA |
| Short-circuit-proof: | No |
| Protective circuit, load side: | Free-wheeling diode |
| max. switching frequency (DC control voltage): | 100 kHz |
| Nominal auxiliary voltage: | 24 V DC ± 20 % / max. 110 mA |
| Contact type: | 1 NO contact (Bipolar transistor) |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | > 3 mm |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178, GL 2003-Vl-Abs. 9, IEC 62314, UL508 |
| Certificate No. (DNVGL): | TAE000033E |
| Certificate No. (GERMLLOYD): | 54853-08 |
| Certificate no. (cULus): | E141197 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 7 mm |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 4 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 4 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Product information: | The cable lengths must not exceed 30 m. |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | MOS 5VTTL/24VDC 0,1A |
| Order No.: | 8937920000 |
| Version: | MICROOPTO, solid-state relais, 1 NO contact (Bipolar transistor), Rated control voltage: 5 V TTL , Rated switching voltage: 24 VDC ±20%, Continuous current: 100 mA, Screw connection |
| GTIN (EAN): | 4032248716159 |
| Qty.: | 1 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 88.1 mm |
| Height (inches): | 3.468 inch |
| Depth: | 97.8 mm |
| Depth (inches): | 3.85 inch |
| Net weight: | 34.8 g |
| Humidity: | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| MTTF: | 1,686 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 5 V TTL |
| Nominal control current: | < 100 µA |
| Power rating: | < 0.5 mW |
| Cut-in / dropout voltage: | 2 V / 1 V DC |
| Status indicator: | Green LED |
| Protective circuit: | Varistor, Reverse polarity protection |
| Nominal auxiliary voltage: | 5 V DC ± 5 % / HIGH: max. 9 mA, LOW: max 400 µA |
| Rated switching voltage: | 24 VDC ±20% |
| Continuous current: | 100 mA |
| Load category: | LC A |
| Switch-on delay: | < 1.3 µ |
| Switch-off delay: | < 1 µs |
| Voltage drop at max. load: | < 1 V |
| Leakage current: | < 20 µA |
| Short-circuit-proof: | No |
| Protective circuit, load side: | Free-wheeling diode |
| max. switching frequency (DC control voltage): | 100 kHz |
| Nominal auxiliary voltage: | 24 V DC ± 20 % / max. 110 mA |
| Contact type: | 1 NO contact (Bipolar transistor) |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | > 3 mm |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178, GL 2003-Vl-Abs. 9, IEC 62314, UL508 |
| Certificate No. (DNVGL): | TAE000033E |
| Certificate No. (GERMLLOYD): | 54853-08 |
| Certificate no. (cULus): | E141197 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 7 mm |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 4 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 4 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Product information: | The cable lengths must not exceed 30 m. |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
