Product
Weidmueller
8768650000
CP DM 20
Request a Quote

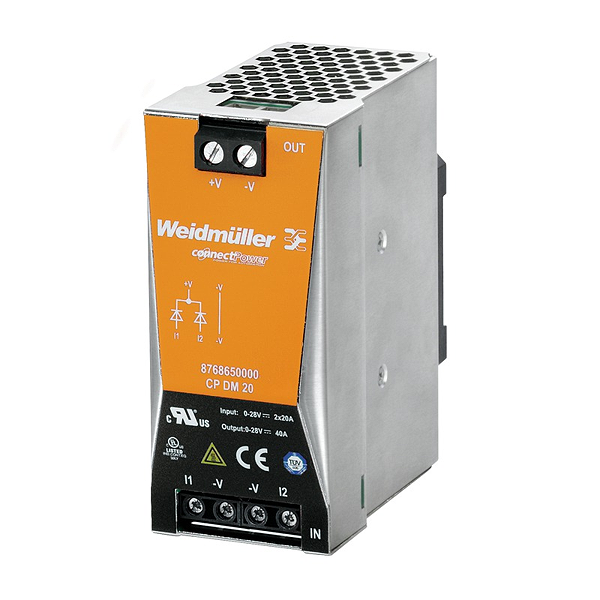

Image copyright: Weidmueller
Weidmueller 8768650000
CP DM 20
2486080000
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2017-10-30 |
| Type: | CP DM 20 |
| Order No.: | 8768650000 |
| Version: | Diode module |
| GTIN (EAN): | 4032248437443 |
| Qty.: | 1 pc(s). |
| Width: | 55.5 mm |
| Width (inches): | 2.185 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 110 mm |
| Depth (inches): | 4.331 inch |
| Weight: | 411 g |
| Net weight: | 411 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | -10 °C...55 °C |
| Storage temperature: | -20 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E255651 |
| Clamping range, input: | 4 mm² |
| Clamping range, input, max.: | 6 mm² |
| Clamping range, input, min.: | 0.13 mm² |
| Input current: | 2 x 0...20 A max. |
| Input voltage (voltage mode input): | 40 V DC max. |
| Wire connection method: | Screw connection |
| Clamping range, output: | 10 mm² |
| Clamping range, output, max.: | 16 mm² |
| Clamping range, output, min.: | 0.32 mm² |
| Output current: | 0...40 A max. or 20 A max. for redundant operations |
| Output power: | 960 W |
| Wire connection method: | Screw connection |
| Degree of efficiency at max. load: | 97.5% |
| Installation advice: | Clearance: side ≥ 2 cm; above/below ≥ 10 cm |
| Mounting position, installation notice: | horizontally, on terminal rail TS 35 |
| Operating temperature: | -10 °C...55 °C |
| Protection degree: | IP20 |
| Output current: | 0...40 A max. or 20 A max. for redundant operations |
| Certificate no. (cULus): | E258476 |
| Certificate No. (cURus): | E255651 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2017-10-30 |
| Type: | CP DM 20 |
| Order No.: | 8768650000 |
| Version: | Diode module |
| GTIN (EAN): | 4032248437443 |
| Qty.: | 1 pc(s). |
| Width: | 55.5 mm |
| Width (inches): | 2.185 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 110 mm |
| Depth (inches): | 4.331 inch |
| Weight: | 411 g |
| Net weight: | 411 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | -10 °C...55 °C |
| Storage temperature: | -20 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E255651 |
| Clamping range, input: | 4 mm² |
| Clamping range, input, max.: | 6 mm² |
| Clamping range, input, min.: | 0.13 mm² |
| Input current: | 2 x 0...20 A max. |
| Input voltage (voltage mode input): | 40 V DC max. |
| Wire connection method: | Screw connection |
| Clamping range, output: | 10 mm² |
| Clamping range, output, max.: | 16 mm² |
| Clamping range, output, min.: | 0.32 mm² |
| Output current: | 0...40 A max. or 20 A max. for redundant operations |
| Output power: | 960 W |
| Wire connection method: | Screw connection |
| Degree of efficiency at max. load: | 97.5% |
| Installation advice: | Clearance: side ≥ 2 cm; above/below ≥ 10 cm |
| Mounting position, installation notice: | horizontally, on terminal rail TS 35 |
| Operating temperature: | -10 °C...55 °C |
| Protection degree: | IP20 |
| Output current: | 0...40 A max. or 20 A max. for redundant operations |
| Certificate no. (cULus): | E258476 |
| Certificate No. (cURus): | E255651 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | 4032248437443 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
