8449040000
MCZ OVP CL 48VUC 1,25A
Request a Quote
Image copyright: Weidmueller

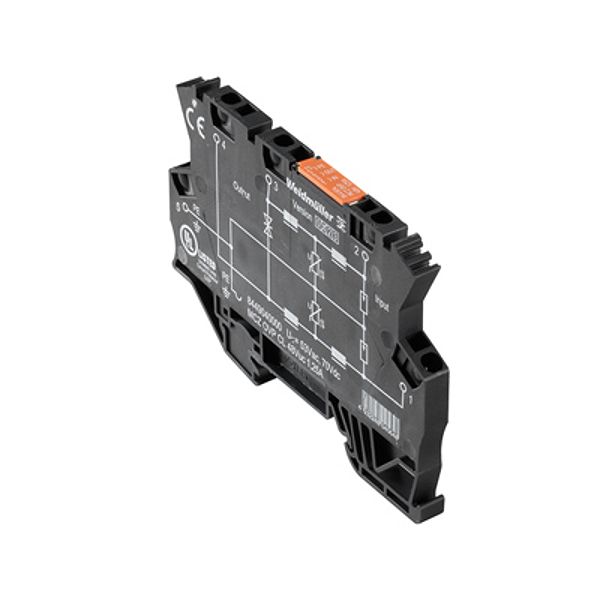

Weidmueller 8449040000
MCZ OVP CL 48VUC 1,25A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MCZ OVP CL 48VUC 1,25A |
| Order No.: | 8449040000 |
| Version: | MCZ SERIES, Surge protection for instrumentation and control, 1.25 A |
| GTIN (EAN): | 4032248045648 |
| Qty.: | 10 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 91 mm |
| Height (inches): | 3.583 inch |
| Depth: | 63.5 mm |
| Depth (inches): | 2.5 inch |
| Net weight: | 27.5 g |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (UL): | E311081 |
| Colour: | black |
| Design: | Terminal |
| Height with TS 35: | 63.5 mm |
| Protection degree: | IP20 |
| Rail: | TS 35 |
| Segment: | Measurement - Monitoring - Setting |
| UL 94 flammability rating: | V-0 |
| Version: | Surge protection for measurement and control |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Rated voltage (AC): | 48 V |
| Rated voltage (DC): | 48 V |
| Rated voltage (DC), max.: | 70 V |
| Voltage type: | AC/DC |
| Max. continuous voltage, Uc (AC): | 53 V |
| Discharge current, max. (8/20 µs): | 5 kA |
| Discharge current, Iimp (10/350 µs): | 1 kA |
| Lightning test current Iimp (10/350 µs): | 1 kA |
| Fuse: | 1.3 A |
| Standards: | HART-compatible |
| Protection level on output side Wire-PE 1kV/µs, typically: | 82 V |
| Protection level on output side Wire-PE 8/20 µs, typically: | 150 V |
| Protection level on output side Wire-wire 1 kV/µs, typically: | 82 V |
| Protection level on output side Wire-wire 8/20 µs, typically: | 150 V |
| Inductance L and L1: | 35 µH |
| Limiting frequency (-3 dB) at load resistance: | 500 kHz 240 Ω |
| Load resistance (for limiting frequency): | 240 Ω |
| Operating current, Imax.: | 1.25 A |
| Operating voltage: | 53 A |
| Rated current IN: | 1.25 A |
| Requirements category acc. to IEC 61643-21: | D1 |
| Response time: | ≤ 100 ps |
| Volume resistance: | 1.00 Ω |
| Cross-section: | 1.5 mm² |
| Wire connection method: | Spring connection |
| Type of connection: | Tension-clamp connection |
| Stripping length, rated connection: | 8 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire cross-section, finely stranded, min. (AWG): | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG): | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| ETIM 6.0: | EC000943 |
| ETIM 7.0: | EC000943 |
| eClass 9.0: | 27-13-08-07 |
| eClass 9.1: | 27-13-08-07 |
| eClass 10.0: | 27-13-08-07 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | MCZ OVP CL 48VUC 1,25A |
| Order No.: | 8449040000 |
| Version: | MCZ SERIES, Surge protection for instrumentation and control, 1.25 A |
| GTIN (EAN): | 4032248045648 |
| Qty.: | 10 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 91 mm |
| Height (inches): | 3.583 inch |
| Depth: | 63.5 mm |
| Depth (inches): | 2.5 inch |
| Net weight: | 27.5 g |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (UL): | E311081 |
| Colour: | black |
| Design: | Terminal |
| Height with TS 35: | 63.5 mm |
| Protection degree: | IP20 |
| Rail: | TS 35 |
| Segment: | Measurement - Monitoring - Setting |
| UL 94 flammability rating: | V-0 |
| Version: | Surge protection for measurement and control |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Rated voltage (AC): | 48 V |
| Rated voltage (DC): | 48 V |
| Rated voltage (DC), max.: | 70 V |
| Voltage type: | AC/DC |
| Max. continuous voltage, Uc (AC): | 53 V |
| Discharge current, max. (8/20 µs): | 5 kA |
| Discharge current, Iimp (10/350 µs): | 1 kA |
| Lightning test current Iimp (10/350 µs): | 1 kA |
| Fuse: | 1.3 A |
| Standards: | HART-compatible |
| Protection level on output side Wire-PE 1kV/µs, typically: | 82 V |
| Protection level on output side Wire-PE 8/20 µs, typically: | 150 V |
| Protection level on output side Wire-wire 1 kV/µs, typically: | 82 V |
| Protection level on output side Wire-wire 8/20 µs, typically: | 150 V |
| Inductance L and L1: | 35 µH |
| Limiting frequency (-3 dB) at load resistance: | 500 kHz 240 Ω |
| Load resistance (for limiting frequency): | 240 Ω |
| Operating current, Imax.: | 1.25 A |
| Operating voltage: | 53 A |
| Rated current IN: | 1.25 A |
| Requirements category acc. to IEC 61643-21: | D1 |
| Response time: | ≤ 100 ps |
| Volume resistance: | 1.00 Ω |
| Cross-section: | 1.5 mm² |
| Wire connection method: | Spring connection |
| Type of connection: | Tension-clamp connection |
| Stripping length, rated connection: | 8 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire cross-section, finely stranded, min. (AWG): | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG): | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| ETIM 6.0: | EC000943 |
| ETIM 7.0: | EC000943 |
| eClass 9.0: | 27-13-08-07 |
| eClass 9.1: | 27-13-08-07 |
| eClass 10.0: | 27-13-08-07 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
