Product
Weidmueller
2580000000
CRIMPFIX R VARIO
Request a Quote

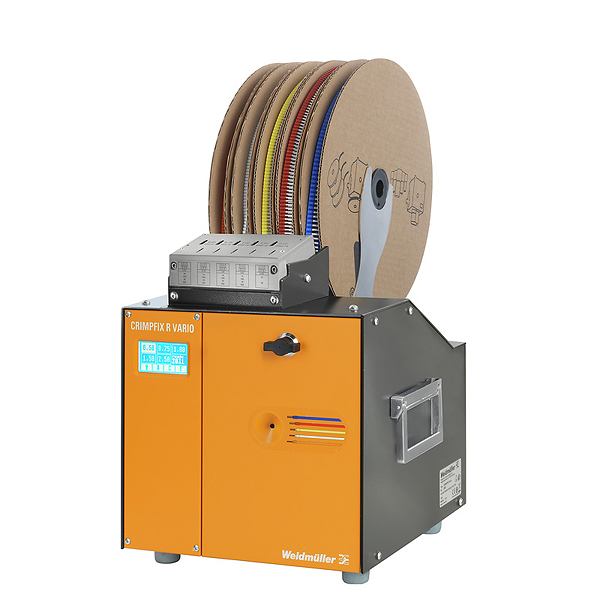

Image copyright: Weidmueller
Weidmueller 2580000000
CRIMPFIX R VARIO
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CRIMPFIX R VARIO |
| Order No.: | 2580000000 |
| Version: | Automatic machines, Automatic stripper and crimper |
| GTIN (EAN): | 4050118605846 |
| Qty.: | 1 pc(s). |
| Width: | 335 mm |
| Width (inches): | 13.189 inch |
| Height: | 565 mm |
| Height (inches): | 22.244 inch |
| Depth: | 485 mm |
| Depth (inches): | 19.094 inch |
| Net weight: | 25,265 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Compressed-air connection: | 5.5 bar |
| Consumables: | Linked wire-end ferrules |
| Crimping: | Trapezoidal |
| Crimping length: | 8/10 mm |
| Drive: | Electropneumatic |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Insertion length, min.: | 27 mm |
| Length of wire-end ferrule: | 14/16 mm |
| Pulse time: | approx. 2 s |
| Stripping range: | 0.5 - 2.5 mm² (~AWG 20-14) |
| Wire end ferrules cross-section, max.: | 2.5 mm² |
| Wire end ferrules cross-section, min.: | 0.5 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-01 |
| eClass 10.0: | 17-13-01-01 |
| ROHS: | Conform |
| Type: | CRIMPFIX R VARIO |
| Order No.: | 2580000000 |
| Version: | Automatic machines, Automatic stripper and crimper |
| GTIN (EAN): | 4050118605846 |
| Qty.: | 1 pc(s). |
| Width: | 335 mm |
| Width (inches): | 13.189 inch |
| Height: | 565 mm |
| Height (inches): | 22.244 inch |
| Depth: | 485 mm |
| Depth (inches): | 19.094 inch |
| Net weight: | 25,265 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Compressed-air connection: | 5.5 bar |
| Consumables: | Linked wire-end ferrules |
| Crimping: | Trapezoidal |
| Crimping length: | 8/10 mm |
| Drive: | Electropneumatic |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Insertion length, min.: | 27 mm |
| Length of wire-end ferrule: | 14/16 mm |
| Pulse time: | approx. 2 s |
| Stripping range: | 0.5 - 2.5 mm² (~AWG 20-14) |
| Wire end ferrules cross-section, max.: | 2.5 mm² |
| Wire end ferrules cross-section, min.: | 0.5 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-01 |
| eClass 10.0: | 17-13-01-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 25.265 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
