Product
Weidmueller
2560700000
SV 7.62HP/03/90MLF3 3.5 BK BX
Request a Quote

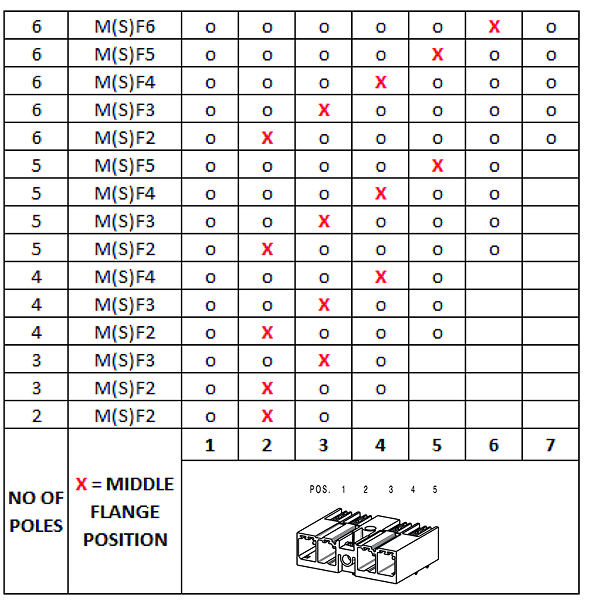

Image copyright: Weidmueller
Weidmueller 2560700000
SV 7.62HP/03/90MLF3 3.5 BK BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SV 7.62HP/03/90MLF3 3.5 BK BX |
| Order No.: | 2560700000 |
| Version: | PCB plug-in connector, male header, THT solder connection, 7.62 mm, Number of poles: 3, 90°, Box |
| GTIN (EAN): | 4050118569650 |
| Qty.: | 60 pc(s). |
| Packaging: | Box |
| Net weight: | 4.66 g |
| Product family: | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 7.62 mm |
| Pitch in inches (P): | 0.3 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 3 |
| Solder pin length tolerance: | +0.1 / -0.3 mm |
| Solder pin dimensions: | 0.8 x 1.0 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| L1 in mm: | 22.86 mm |
| L1 in inches: | 0.9 inch |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Touch-safe above the printed circuit board |
| Plugging cycles: | 25 |
| Insulating material group: | II |
| Comparative Tracking Index (CTI): | ≥ 500 |
| GWFI: | 960 °C |
| Layer structure of solder connection: | 1...3 µm Ni / 4...6 µm Sn matt |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 130 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 130 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 57 A |
| Clearance, min.: | 6.9 mm |
| Creepage distance, min.: | 9.6 mm |
| Clearance distance, min.: | 6.9 mm |
| Creepage distance, min.: | 9.6 mm |
| Packaging: | Box |
| VPE length: | 335 mm |
| VPE width: | 135 mm |
| VPE height: | 40 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Type: | SV 7.62HP/03/90MLF3 3.5 BK BX |
| Order No.: | 2560700000 |
| Version: | PCB plug-in connector, male header, THT solder connection, 7.62 mm, Number of poles: 3, 90°, Box |
| GTIN (EAN): | 4050118569650 |
| Qty.: | 60 pc(s). |
| Packaging: | Box |
| Net weight: | 4.66 g |
| Product family: | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 7.62 mm |
| Pitch in inches (P): | 0.3 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 3 |
| Solder pin length tolerance: | +0.1 / -0.3 mm |
| Solder pin dimensions: | 0.8 x 1.0 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| L1 in mm: | 22.86 mm |
| L1 in inches: | 0.9 inch |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Touch-safe above the printed circuit board |
| Plugging cycles: | 25 |
| Insulating material group: | II |
| Comparative Tracking Index (CTI): | ≥ 500 |
| GWFI: | 960 °C |
| Layer structure of solder connection: | 1...3 µm Ni / 4...6 µm Sn matt |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 130 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 130 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 57 A |
| Clearance, min.: | 6.9 mm |
| Creepage distance, min.: | 9.6 mm |
| Clearance distance, min.: | 6.9 mm |
| Creepage distance, min.: | 9.6 mm |
| Packaging: | Box |
| VPE length: | 335 mm |
| VPE width: | 135 mm |
| VPE height: | 40 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.008 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
