Product
Weidmueller
2526160000
HS 4.2-12.7/12 MM Y
Request a Quote

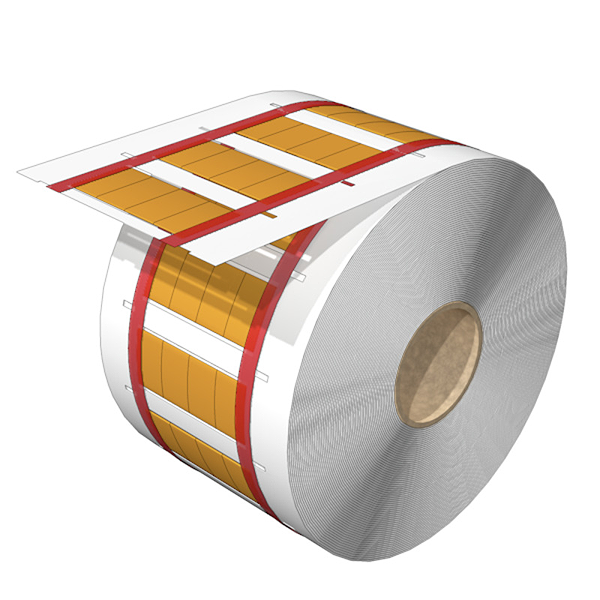

Image copyright: Weidmueller
Weidmueller 2526160000
HS 4.2-12.7/12 MM Y
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HS 4.2-12.7/12 MM Y |
| Order No.: | 2526160000 |
| Version: | Conductor and cable markers, 4.2 - 12.7 mm, 12.7 x 20.9 mm, yellow |
| GTIN (EAN): | 4050118537314 |
| Qty.: | 2,000 pc(s). |
| Width: | 20.9 mm |
| Width (inches): | 0.823 inch |
| Height: | 12.7 mm |
| Height (inches): | 0.5 inch |
| Depth: | 1.2 mm |
| Depth (inches): | 0.047 inch |
| Net weight: | 0.37 g |
| Colour: | yellow |
| Halogen: | Yes |
| Material: | Polyolefine |
| Number per roll: | 2,000 Stück |
| Operating temperature range: | -55...135 °C |
| Recommended industries: | Plant manufacture, Energy, Device manufacturer, Machinery |
| Width: | 20.9 mm |
| Conductor O.D.: | 4.2 - 12.7 mm |
| Conductor O.D., max.: | 12.7 mm |
| Conductor O.D., min.: | 4.2 mm |
| Conductor cross-section, max.: | 35 mm² |
| Conductor cross-section, min.: | 6 mm² |
| Halogen: | Yes |
| Rate of shrinkage: | 3:1 |
| Recommended shrinking temperature: | 90 °C |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
| Type: | HS 4.2-12.7/12 MM Y |
| Order No.: | 2526160000 |
| Version: | Conductor and cable markers, 4.2 - 12.7 mm, 12.7 x 20.9 mm, yellow |
| GTIN (EAN): | 4050118537314 |
| Qty.: | 2,000 pc(s). |
| Width: | 20.9 mm |
| Width (inches): | 0.823 inch |
| Height: | 12.7 mm |
| Height (inches): | 0.5 inch |
| Depth: | 1.2 mm |
| Depth (inches): | 0.047 inch |
| Net weight: | 0.37 g |
| Colour: | yellow |
| Halogen: | Yes |
| Material: | Polyolefine |
| Number per roll: | 2,000 Stück |
| Operating temperature range: | -55...135 °C |
| Recommended industries: | Plant manufacture, Energy, Device manufacturer, Machinery |
| Width: | 20.9 mm |
| Conductor O.D.: | 4.2 - 12.7 mm |
| Conductor O.D., max.: | 12.7 mm |
| Conductor O.D., min.: | 4.2 mm |
| Conductor cross-section, max.: | 35 mm² |
| Conductor cross-section, min.: | 6 mm² |
| Halogen: | Yes |
| Rate of shrinkage: | 3:1 |
| Recommended shrinking temperature: | 90 °C |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
