Product
Weidmueller
2503740300
HDC XX6A02 FMSRJ45-0300
Request a Quote

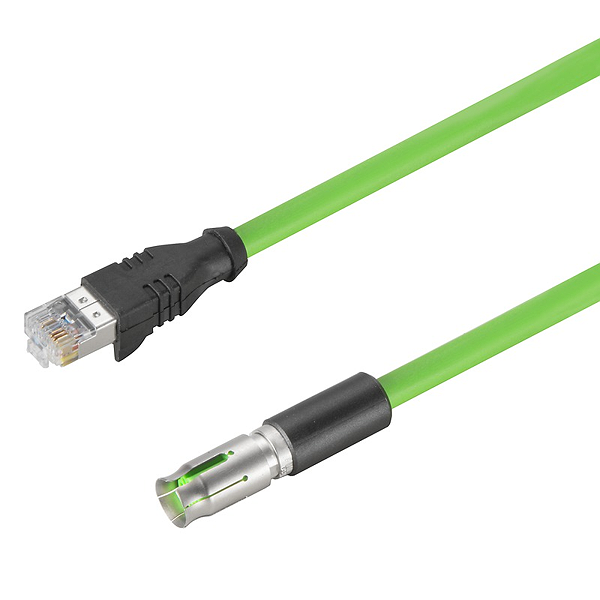

Image copyright: Weidmueller
Weidmueller 2503740300
HDC XX6A02 FMSRJ45-0300
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HDC XX6A02 FMSRJ45-0300 |
| Order No.: | 2503740300 |
| GTIN (EAN): | 4050118522686 |
| Qty.: | 1 pc(s). |
| Net weight: | 0.001 g |
| Limit temperature: | -30 °C ... 90 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Module side version: | Female |
| Opposite side version: | Male, straight, RJ45 |
| Cable length: | 3 m |
| Category: | Cat. 6A |
| Coding: | X |
| Contact surface: | Au (Gold) |
| Number of poles: | 8 |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 2 |
| Rated current: | 0.5 A |
| Rated voltage: | 50 V |
| Transmission rate: | 10 Gbps |
| Type: | Female |
| Cable length: | 3 m |
| Colour coding: | white / orange, orange, white / green, green, white / brown, brown, white / blue, blue |
| Halogen: | halogen-free, according to IEC 60754-1 |
| Insulation: | PE, Expanded |
| Outside diameter: | 6.4 mm ± 0.3 |
| Sheath material: | PUR |
| Sheathing colour: | green |
| Shielded: | Yes |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-07 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-07 |
| ROHS: | Conform |
| Type: | HDC XX6A02 FMSRJ45-0300 |
| Order No.: | 2503740300 |
| GTIN (EAN): | 4050118522686 |
| Qty.: | 1 pc(s). |
| Net weight: | 0.001 g |
| Limit temperature: | -30 °C ... 90 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Module side version: | Female |
| Opposite side version: | Male, straight, RJ45 |
| Cable length: | 3 m |
| Category: | Cat. 6A |
| Coding: | X |
| Contact surface: | Au (Gold) |
| Number of poles: | 8 |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 2 |
| Rated current: | 0.5 A |
| Rated voltage: | 50 V |
| Transmission rate: | 10 Gbps |
| Type: | Female |
| Cable length: | 3 m |
| Colour coding: | white / orange, orange, white / green, green, white / brown, brown, white / blue, blue |
| Halogen: | halogen-free, according to IEC 60754-1 |
| Insulation: | PE, Expanded |
| Outside diameter: | 6.4 mm ± 0.3 |
| Sheath material: | PUR |
| Sheathing colour: | green |
| Shielded: | Yes |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-07 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-07 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.163 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
