Product
Weidmueller
2502890000
WPD 133 1X300/1X300 BK
Request a Quote

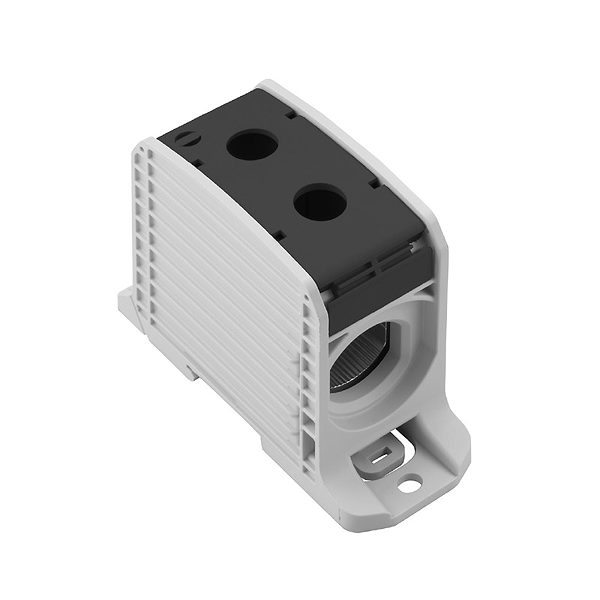

Image copyright: Weidmueller
Weidmueller 2502890000
WPD 133 1X300/1X300 BK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WPD 133 1X300/1X300 BK |
| Order No.: | 2502890000 |
| Version: | W-Series, Distribution block, Rated cross-section: 300 mm², Terminal rail / mounting plate |
| GTIN (EAN): | 4050118516715 |
| Qty.: | 1 pc(s). |
| Width: | 45 mm |
| Width (inches): | 1.772 inch |
| Height: | 118 mm |
| Height (inches): | 4.646 inch |
| Depth: | 83.5 mm |
| Depth (inches): | 3.287 inch |
| Net weight: | 338 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | CNEX18ATEX0016U |
| Certificate No. (IECEX): | IECEXCNEX18.0010U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 520 A |
| Wire cross section max. (ATEX): | 300 mm² |
| Max. voltage (IECEX): | 1100 V |
| Current (IECEX): | 520 A |
| Version: | Screw connection |
| Number of levels: | 1 |
| Installation advice: | Terminal rail / mounting plate |
| Type of mounting: | Snap-on |
| Rated cross-section: | 300 mm² |
| Rated voltage: | 1,000 |
| Rated AC voltage: | 1,000 V AC |
| Rated DC voltage: | 1,000 V DC |
| Rated current: | 520 A |
| Standards: | IEC 60947-7-1, UL 1059, CSA |
| Volume resistance according to IEC 60947-7-x: | 0.06 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 16.64 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Product information: | You will find additional information in the downloadsection of the onlinecatalogue |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WPD 133 1X300/1X300 BK |
| Order No.: | 2502890000 |
| Version: | W-Series, Distribution block, Rated cross-section: 300 mm², Terminal rail / mounting plate |
| GTIN (EAN): | 4050118516715 |
| Qty.: | 1 pc(s). |
| Width: | 45 mm |
| Width (inches): | 1.772 inch |
| Height: | 118 mm |
| Height (inches): | 4.646 inch |
| Depth: | 83.5 mm |
| Depth (inches): | 3.287 inch |
| Net weight: | 338 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | CNEX18ATEX0016U |
| Certificate No. (IECEX): | IECEXCNEX18.0010U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 520 A |
| Wire cross section max. (ATEX): | 300 mm² |
| Max. voltage (IECEX): | 1100 V |
| Current (IECEX): | 520 A |
| Version: | Screw connection |
| Number of levels: | 1 |
| Installation advice: | Terminal rail / mounting plate |
| Type of mounting: | Snap-on |
| Rated cross-section: | 300 mm² |
| Rated voltage: | 1,000 |
| Rated AC voltage: | 1,000 V AC |
| Rated DC voltage: | 1,000 V DC |
| Rated current: | 520 A |
| Standards: | IEC 60947-7-1, UL 1059, CSA |
| Volume resistance according to IEC 60947-7-x: | 0.06 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 16.64 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Product information: | You will find additional information in the downloadsection of the onlinecatalogue |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.356 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
