Product
Weidmueller
2500950000
WDU 10 SL STB 14
Request a Quote

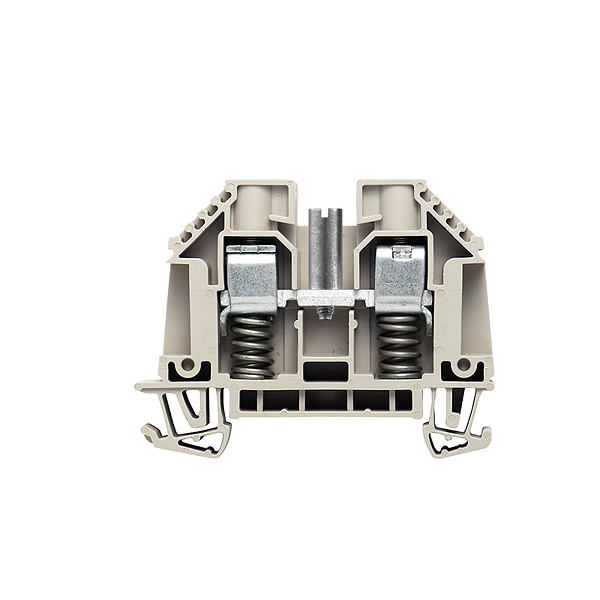

Image copyright: Weidmueller
Weidmueller 2500950000
WDU 10 SL STB 14
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WDU 10 SL STB 14 |
| Order No.: | 2500950000 |
| Version: | W-Series, Feed-through terminal, Rated cross-section: 10 mm², Screw connection |
| GTIN (EAN): | 4050118514216 |
| Qty.: | 50 pc(s). |
| Width: | 9.9 mm |
| Width (inches): | 0.39 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 46.25 mm |
| Depth (inches): | 1.821 inch |
| Depth including DIN rail: | 47 mm |
| Net weight: | 23.332 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, with spring-loaded cable clamp, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.31 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 17 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 6 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 630 V |
| Rated current: | 57 A |
| Current at maximum wires: | 76 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 2 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WDU 10 SL STB 14 |
| Order No.: | 2500950000 |
| Version: | W-Series, Feed-through terminal, Rated cross-section: 10 mm², Screw connection |
| GTIN (EAN): | 4050118514216 |
| Qty.: | 50 pc(s). |
| Width: | 9.9 mm |
| Width (inches): | 0.39 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 46.25 mm |
| Depth (inches): | 1.821 inch |
| Depth including DIN rail: | 47 mm |
| Net weight: | 23.332 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, with spring-loaded cable clamp, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.31 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 17 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 6 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 630 V |
| Rated current: | 57 A |
| Current at maximum wires: | 76 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 2 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.024 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
