Product
Weidmueller
2496190000
ITS 24-240VUC 1CO M7C
Request a Quote

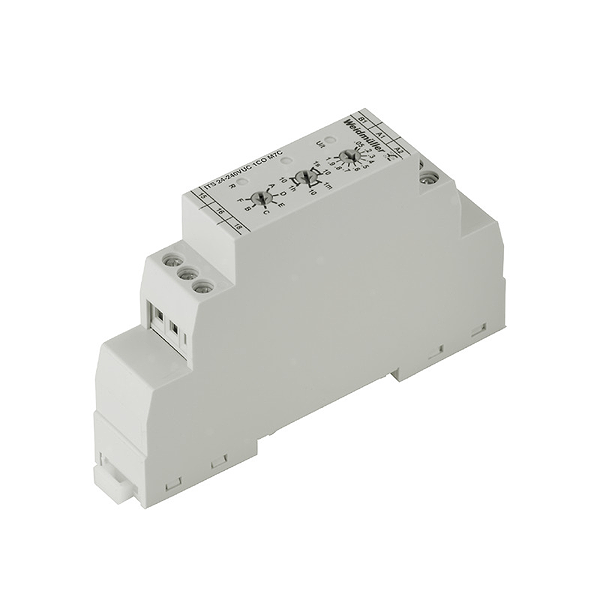

Image copyright: Weidmueller
Weidmueller 2496190000
ITS 24-240VUC 1CO M7C
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ITS 24-240VUC 1CO M7C |
| Order No.: | 2496190000 |
| Version: | IT TIMER, Multifunction timing relay, with separate control input, Number of contacts: 1, CO contact, AgNi, Continuous current: 5 A, Screw connection |
| GTIN (EAN): | 4050118506211 |
| Qty.: | 1 pc(s). |
| Width: | 17.5 mm |
| Width (inches): | 0.689 inch |
| Height: | 98 mm |
| Height (inches): | 3.858 inch |
| Depth: | 57.9 mm |
| Depth (inches): | 2.28 inch |
| Net weight: | 58 g |
| Humidity: | 25 - 75%, no condensation |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...50 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24...48 V DC - 15 % / + 10 % / 24...240 V AC - 15 % / + 10 % |
| Power rating: | 8 VA @ 230 V AC, 0.4 W at 24 V DC |
| Status indicator: | LED green (U/t): flashes when time runs, lights permanently with supply voltage applied, LED yellow (R): relay closed |
| Repeat accuracy: | < 0.5 % or ±5 ms |
| Setting tolerance: | 5 % |
| Basic accuracy: | < 1.5 % (of scale-end value) |
| Min. pulse duration: | 50 ms |
| Time ranges: | 0.05 s - 1 s, 0.5 s - 10 s, 3 s - 60 s, 0.5 min - 10 min, 3 min - 1 h, 0.5 h - 10 h |
| Timing function: | On delay, Off-delay, Single shot rising edge with control input, Single shot rising edge supply voltage controlled, Single shot falling edge with control input, Clock generator pause first, Flip-flop / latching |
| Max. reset time after voltage interruption: | 100 ms |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Max. switching voltage, DC: | 30 V |
| Continuous current: | 5 A |
| AC switching capacity (resistive), max.: | 1250 VA |
| DC switching capacity (resistive), max.: | 90 W |
| Min. switching power: | 10 mA @ 12 V, 100 mA @ 5 V |
| Contact type: | 1 CO contact (AgNi) |
| Version: | with separate control input |
| Rail: | TS 35 |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Resistance to vibration EN 61812-1: | 10 Hz...60 Hz: 0.15 mm, 60 Hz...150 Hz: 2 g |
| Rated voltage: | 300 V |
| Surge voltage category: | II |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Dielectric strength, Input/Output: | 1.6 kV |
| Creepage and clearance distance input – output: | ≥ 3 mm |
| Impulse withstand voltage: | 2.5 kV |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 7 mm |
| Tightening torque, max.: | 0.5 Nm |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.25 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 23 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.25 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.25 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 2.5 mm² |
| Blade size: | size PH1 |
| ETIM 6.0: | EC001439 |
| ETIM 7.0: | EC001439 |
| eClass 9.0: | 27-37-16-05 |
| eClass 9.1: | 27-37-16-05 |
| eClass 10.0: | 27-37-16-05 |
| ROHS: | Conform |
| Type: | ITS 24-240VUC 1CO M7C |
| Order No.: | 2496190000 |
| Version: | IT TIMER, Multifunction timing relay, with separate control input, Number of contacts: 1, CO contact, AgNi, Continuous current: 5 A, Screw connection |
| GTIN (EAN): | 4050118506211 |
| Qty.: | 1 pc(s). |
| Width: | 17.5 mm |
| Width (inches): | 0.689 inch |
| Height: | 98 mm |
| Height (inches): | 3.858 inch |
| Depth: | 57.9 mm |
| Depth (inches): | 2.28 inch |
| Net weight: | 58 g |
| Humidity: | 25 - 75%, no condensation |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...50 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24...48 V DC - 15 % / + 10 % / 24...240 V AC - 15 % / + 10 % |
| Power rating: | 8 VA @ 230 V AC, 0.4 W at 24 V DC |
| Status indicator: | LED green (U/t): flashes when time runs, lights permanently with supply voltage applied, LED yellow (R): relay closed |
| Repeat accuracy: | < 0.5 % or ±5 ms |
| Setting tolerance: | 5 % |
| Basic accuracy: | < 1.5 % (of scale-end value) |
| Min. pulse duration: | 50 ms |
| Time ranges: | 0.05 s - 1 s, 0.5 s - 10 s, 3 s - 60 s, 0.5 min - 10 min, 3 min - 1 h, 0.5 h - 10 h |
| Timing function: | On delay, Off-delay, Single shot rising edge with control input, Single shot rising edge supply voltage controlled, Single shot falling edge with control input, Clock generator pause first, Flip-flop / latching |
| Max. reset time after voltage interruption: | 100 ms |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Max. switching voltage, DC: | 30 V |
| Continuous current: | 5 A |
| AC switching capacity (resistive), max.: | 1250 VA |
| DC switching capacity (resistive), max.: | 90 W |
| Min. switching power: | 10 mA @ 12 V, 100 mA @ 5 V |
| Contact type: | 1 CO contact (AgNi) |
| Version: | with separate control input |
| Rail: | TS 35 |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Resistance to vibration EN 61812-1: | 10 Hz...60 Hz: 0.15 mm, 60 Hz...150 Hz: 2 g |
| Rated voltage: | 300 V |
| Surge voltage category: | II |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Dielectric strength, Input/Output: | 1.6 kV |
| Creepage and clearance distance input – output: | ≥ 3 mm |
| Impulse withstand voltage: | 2.5 kV |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 7 mm |
| Tightening torque, max.: | 0.5 Nm |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.25 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 23 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.25 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.25 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 2.5 mm² |
| Blade size: | size PH1 |
| ETIM 6.0: | EC001439 |
| ETIM 7.0: | EC001439 |
| eClass 9.0: | 27-37-16-05 |
| eClass 9.1: | 27-37-16-05 |
| eClass 10.0: | 27-37-16-05 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.058 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
