Product
Weidmueller
2485980000
MCV APG 1.5
Request a Quote

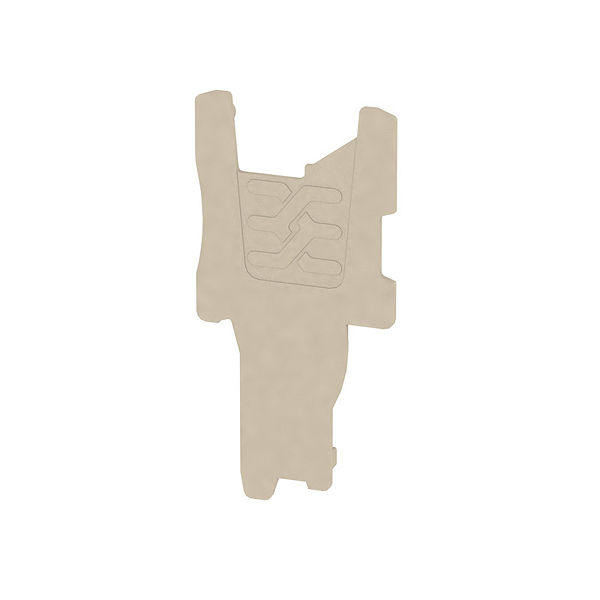

Image copyright: Weidmueller
Weidmueller 2485980000
MCV APG 1.5
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MCV APG 1.5 |
| Order No.: | 2485980000 |
| Version: | A-series, End plate |
| GTIN (EAN): | 4050118496512 |
| Qty.: | 50 pc(s). |
| Width: | 0.5 mm |
| Width (inches): | 0.02 inch |
| Height: | 14 mm |
| Height (inches): | 0.551 inch |
| Depth: | 28.6 mm |
| Depth (inches): | 1.126 inch |
| Net weight: | 0.24 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| ROHS: | Conform |
| Type: | MCV APG 1.5 |
| Order No.: | 2485980000 |
| Version: | A-series, End plate |
| GTIN (EAN): | 4050118496512 |
| Qty.: | 50 pc(s). |
| Width: | 0.5 mm |
| Width (inches): | 0.02 inch |
| Height: | 14 mm |
| Height (inches): | 0.551 inch |
| Depth: | 28.6 mm |
| Depth (inches): | 1.126 inch |
| Net weight: | 0.24 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
