Product
Weidmueller
2467040000
PRO TOP1 480W 48V 10A EX
Request a Quote

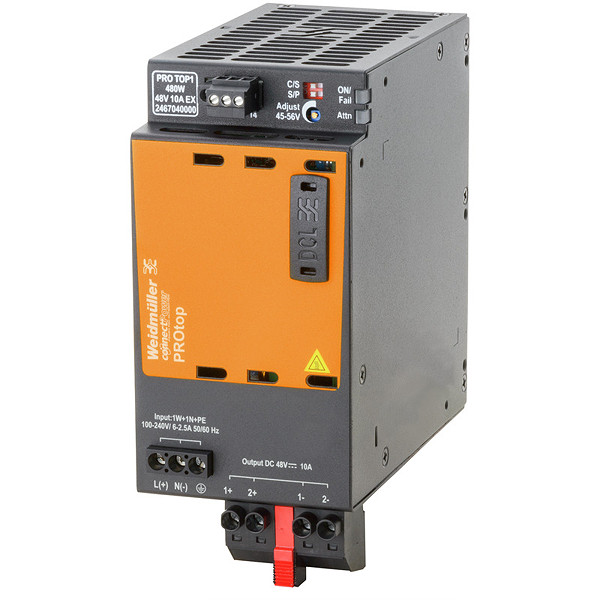

Image copyright: Weidmueller
Weidmueller 2467040000
PRO TOP1 480W 48V 10A EX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PRO TOP1 480W 48V 10A EX |
| Order No.: | 2467040000 |
| Version: | Power supply, switch-mode power supply unit, 48 V |
| GTIN (EAN): | 4050118481945 |
| Qty.: | 1 pc(s). |
| Width: | 68 mm |
| Width (inches): | 2.677 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 125 mm |
| Depth (inches): | 4.921 inch |
| Net weight: | 1,520 g |
| Humidity at operating temperature: | 5...100 % no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| AC input voltage range: | 85…277 V AC |
| Connection system: | Clamping yoke |
| DC input voltage range: | 80 ... 410 V DC |
| Dielectric strength: | max. 300 V AC ≤ 15 s |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 5 A |
| Rated input voltage: | 100 - 240 V AC / 120 - 340 V DC |
| Recommended back-up fuse: | 8 A (DI) / 10 A (Char. B), 8 A (Char. C) |
| Surge protection: | Varistor |
| DCL - peak load reserve: | 150 % (5 s); 500 % (15 ms) |
| Connection system: | Clamping yoke connection |
| Mains failure bridge-over time: | > 20 ms @ 115V AC/ 230 VAC |
| Nominal output current for Unom: | 10 A @ 60 °C |
| Output power: | 480 W |
| Output voltage: | 48 V |
| Output voltage: | 45...56 V |
| Parallel connection option: | yes, max 10 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 48 V DC ± 1 % |
| Reserve capacity @ UNominal: | 130% permanent at ≤ 40°C, 150 % (5 s) |
| Triggerable circuit breakers: | C2, C4, B6 |
| AC failure bridging time @ Inom: | > 20 ms @ 230 V AC / > 20 ms @ 115 V AC |
| Conformal coating: | Yes |
| Degree of efficiency: | 93% |
| Derating: | > 60°C (2.5% / 1°C) |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 1.000.000 h according IEC 1709 (SN29500) |
| Mounting position, installation notice: | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Operating temperature: | -40 °C...70 °C |
| Power factor (approx.): | > 0.9 |
| Power loss, idling: | 10 W |
| Power loss, nominal load: | 36.1 W |
| Protection degree: | IP20 |
| Series switching capability: | No |
| Short-circuit protection: | Yes, internal |
| Surge voltage category: | III, II |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail), 4 g (with direct mounting) |
| Interference immunity test acc. to: | EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011 |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...100 % no condensation |
| Insulation voltage input / earth: | 3.2 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 3.5 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Surge voltage category: | III, II |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Clamping yoke |
| Number of terminals: | 3 for L/N/PE |
| Screwdriver blade: | 0.8 x 4.0 |
| Wire connection cross section, flexible (input), max.: | 4 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 8 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | Clamping yoke connection |
| Number of terminals: | 5 (+ + / - - -) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.2 mm² |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 28 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.2 mm² |
| Floating contact: | Yes |
| LED green/red: | Green: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error |
| Status relay (max. load): | Output voltage OK (30 V DC / 1 A) |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO TOP1 480W 48V 10A EX |
| Order No.: | 2467040000 |
| Version: | Power supply, switch-mode power supply unit, 48 V |
| GTIN (EAN): | 4050118481945 |
| Qty.: | 1 pc(s). |
| Width: | 68 mm |
| Width (inches): | 2.677 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 125 mm |
| Depth (inches): | 4.921 inch |
| Net weight: | 1,520 g |
| Humidity at operating temperature: | 5...100 % no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| AC input voltage range: | 85…277 V AC |
| Connection system: | Clamping yoke |
| DC input voltage range: | 80 ... 410 V DC |
| Dielectric strength: | max. 300 V AC ≤ 15 s |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 5 A |
| Rated input voltage: | 100 - 240 V AC / 120 - 340 V DC |
| Recommended back-up fuse: | 8 A (DI) / 10 A (Char. B), 8 A (Char. C) |
| Surge protection: | Varistor |
| DCL - peak load reserve: | 150 % (5 s); 500 % (15 ms) |
| Connection system: | Clamping yoke connection |
| Mains failure bridge-over time: | > 20 ms @ 115V AC/ 230 VAC |
| Nominal output current for Unom: | 10 A @ 60 °C |
| Output power: | 480 W |
| Output voltage: | 48 V |
| Output voltage: | 45...56 V |
| Parallel connection option: | yes, max 10 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 48 V DC ± 1 % |
| Reserve capacity @ UNominal: | 130% permanent at ≤ 40°C, 150 % (5 s) |
| Triggerable circuit breakers: | C2, C4, B6 |
| AC failure bridging time @ Inom: | > 20 ms @ 230 V AC / > 20 ms @ 115 V AC |
| Conformal coating: | Yes |
| Degree of efficiency: | 93% |
| Derating: | > 60°C (2.5% / 1°C) |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 1.000.000 h according IEC 1709 (SN29500) |
| Mounting position, installation notice: | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Operating temperature: | -40 °C...70 °C |
| Power factor (approx.): | > 0.9 |
| Power loss, idling: | 10 W |
| Power loss, nominal load: | 36.1 W |
| Protection degree: | IP20 |
| Series switching capability: | No |
| Short-circuit protection: | Yes, internal |
| Surge voltage category: | III, II |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail), 4 g (with direct mounting) |
| Interference immunity test acc. to: | EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011 |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...100 % no condensation |
| Insulation voltage input / earth: | 3.2 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 3.5 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Surge voltage category: | III, II |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Clamping yoke |
| Number of terminals: | 3 for L/N/PE |
| Screwdriver blade: | 0.8 x 4.0 |
| Wire connection cross section, flexible (input), max.: | 4 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 8 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | Clamping yoke connection |
| Number of terminals: | 5 (+ + / - - -) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.2 mm² |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 28 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.2 mm² |
| Floating contact: | Yes |
| LED green/red: | Green: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error |
| Status relay (max. load): | Output voltage OK (30 V DC / 1 A) |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.77 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
