Product
Weidmueller
2081890000
AMG AM
Request a Quote

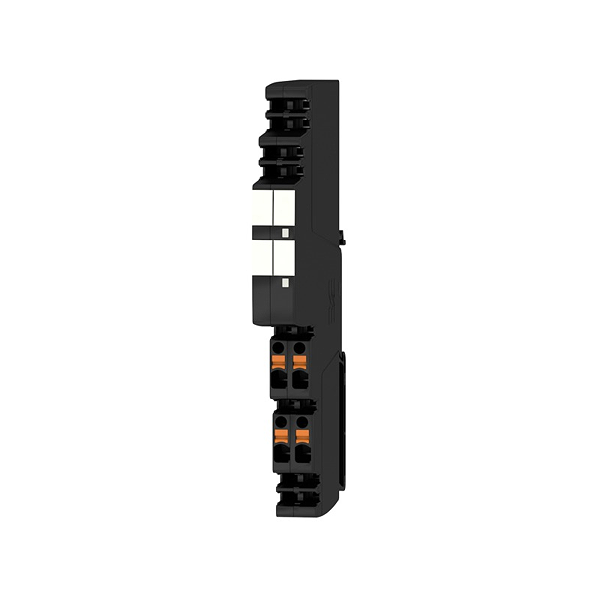

Image copyright: Weidmueller
Weidmueller 2081890000
AMG AM
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | AMG AM |
| Order No.: | 2081890000 |
| Version: | Alarm module, 24 V DC |
| GTIN (EAN): | 4050118419337 |
| Qty.: | 1 pc(s). |
| Width: | 12.2 mm |
| Width (inches): | 0.48 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 96.5 mm |
| Depth (inches): | 3.799 inch |
| Net weight: | 56 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| MTTF: | 550 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Current consumption (full load): | 30 mA |
| Current consumption (idle): | 25 mA |
| DC input voltage range: | 18…30 V DC |
| Input fuse (internal): | No |
| Rated input voltage: | 24 V DC |
| Surge protection: | Suppressor diode |
| max. admissible residual ripple at the input: | 100 mVpp |
| Connection system: | PUSH IN |
| Surge protection: | Suppressor diode |
| Conformal coating: | No |
| Control inputs: | No |
| Operating temperature: | -25 °C...55 °C |
| Protection degree: | IP20 |
| Surge protection input, bus: | Suppressor diode |
| Surge voltage category: | III |
| Surge voltage category: | III |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.14 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.14 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (2 x NO) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max.: | 2.5 mm² |
| Floating contact: | Yes |
| Red LED: | Alarm |
| Status relay (max. load): | Alarm (24 V / 0.1 A), I > 90 % (24 V / 0,1 A) |
| Transistor output, positive-switching: | Pre-warning, Alarm |
| Yellow LED: | Current > 90% Inom (flashing) |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002057 |
| ETIM 7.0: | EC002057 |
| eClass 9.0: | 27-37-10-16 |
| eClass 9.1: | 27-37-10-16 |
| eClass 10.0: | 27-37-10-16 |
| ROHS: | Conform |
| Type: | AMG AM |
| Order No.: | 2081890000 |
| Version: | Alarm module, 24 V DC |
| GTIN (EAN): | 4050118419337 |
| Qty.: | 1 pc(s). |
| Width: | 12.2 mm |
| Width (inches): | 0.48 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 96.5 mm |
| Depth (inches): | 3.799 inch |
| Net weight: | 56 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| MTTF: | 550 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Current consumption (full load): | 30 mA |
| Current consumption (idle): | 25 mA |
| DC input voltage range: | 18…30 V DC |
| Input fuse (internal): | No |
| Rated input voltage: | 24 V DC |
| Surge protection: | Suppressor diode |
| max. admissible residual ripple at the input: | 100 mVpp |
| Connection system: | PUSH IN |
| Surge protection: | Suppressor diode |
| Conformal coating: | No |
| Control inputs: | No |
| Operating temperature: | -25 °C...55 °C |
| Protection degree: | IP20 |
| Surge protection input, bus: | Suppressor diode |
| Surge voltage category: | III |
| Surge voltage category: | III |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.14 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.14 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (2 x NO) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max.: | 2.5 mm² |
| Floating contact: | Yes |
| Red LED: | Alarm |
| Status relay (max. load): | Alarm (24 V / 0.1 A), I > 90 % (24 V / 0,1 A) |
| Transistor output, positive-switching: | Pre-warning, Alarm |
| Yellow LED: | Current > 90% Inom (flashing) |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002057 |
| ETIM 7.0: | EC002057 |
| eClass 9.0: | 27-37-10-16 |
| eClass 9.1: | 27-37-10-16 |
| eClass 10.0: | 27-37-10-16 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.086 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
