Product
Weidmueller
2081870000
AMG FIM-0
Request a Quote

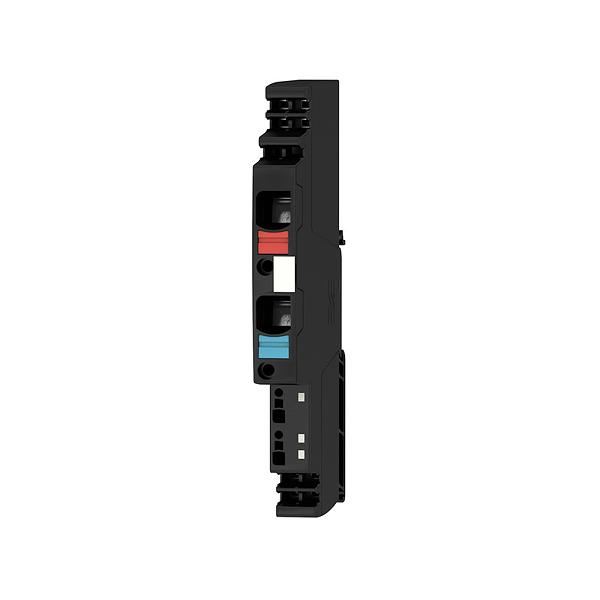

Image copyright: Weidmueller
Weidmueller 2081870000
AMG FIM-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | AMG FIM-0 |
| Order No.: | 2081870000 |
| Version: | Supply module, 24 V DC |
| GTIN (EAN): | 4050118419443 |
| Qty.: | 1 pc(s). |
| Width: | 12.2 mm |
| Width (inches): | 0.48 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 96.5 mm |
| Depth (inches): | 3.799 inch |
| Net weight: | 0.14 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| MTTF: | 50,000 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | PUSH IN |
| DC input voltage range: | 18…30 V DC |
| Input fuse (internal): | No |
| Rated input voltage: | 24 V DC |
| max. admissible residual ripple at the input: | 100 mVpp |
| Connection system: | PUSH IN |
| Conformal coating: | No |
| Control inputs: | No |
| Monitoring function: | No |
| Operating temperature: | -25 °C...55 °C |
| Protection degree: | IP20 |
| Surge voltage category: | III |
| Surge voltage category: | III |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 18 |
| Conductor cross-section, flexible , min.: | 0.75 mm² |
| Conductor cross-section, rigid , max.: | 10 mm² |
| Conductor cross-section, rigid , min.: | 0.75 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 2 (+,−) |
| Screwdriver blade: | 1.2 x 6.5 |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Connection system: | PUSH IN |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | AMG FIM-0 |
| Order No.: | 2081870000 |
| Version: | Supply module, 24 V DC |
| GTIN (EAN): | 4050118419443 |
| Qty.: | 1 pc(s). |
| Width: | 12.2 mm |
| Width (inches): | 0.48 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 96.5 mm |
| Depth (inches): | 3.799 inch |
| Net weight: | 0.14 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| MTTF: | 50,000 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | PUSH IN |
| DC input voltage range: | 18…30 V DC |
| Input fuse (internal): | No |
| Rated input voltage: | 24 V DC |
| max. admissible residual ripple at the input: | 100 mVpp |
| Connection system: | PUSH IN |
| Conformal coating: | No |
| Control inputs: | No |
| Monitoring function: | No |
| Operating temperature: | -25 °C...55 °C |
| Protection degree: | IP20 |
| Surge voltage category: | III |
| Surge voltage category: | III |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 18 |
| Conductor cross-section, flexible , min.: | 0.75 mm² |
| Conductor cross-section, rigid , max.: | 10 mm² |
| Conductor cross-section, rigid , min.: | 0.75 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 2 (+,−) |
| Screwdriver blade: | 1.2 x 6.5 |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Connection system: | PUSH IN |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.106 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
