Product
Weidmueller
2001820000
PRO DCDC 480W 24V 20A
Request a Quote

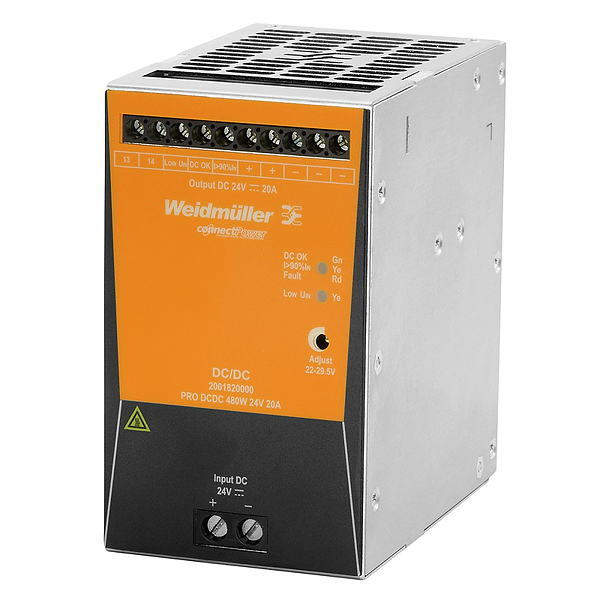

Image copyright: Weidmueller
Weidmueller 2001820000
PRO DCDC 480W 24V 20A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PRO DCDC 480W 24V 20A |
| Order No.: | 2001820000 |
| Version: | DC/DC converter, 24 V |
| GTIN (EAN): | 4050118384000 |
| Qty.: | 1 pc(s). |
| Width: | 75 mm |
| Width (inches): | 2.953 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 120 mm |
| Depth (inches): | 4.724 inch |
| Net weight: | 1,300 g |
| Humidity: | 5...95 %, no condensation |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| MTBF: | 1,000,000 h |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | Screw connection |
| DC input voltage range: | 14...32 V (during operation), 18...32 V (commissioning) |
| Input fuse (internal): | Yes |
| Inrush Current Limitation: | Yes |
| Inrush current: | max. 30 A |
| Rated input voltage: | 24 V DC |
| Recommended back-up fuse: | 40 A, Char. B circuit breaker, 40 A, Char. C circuit breaker |
| DCL - peak load reserve: | 150 % (5 s); 200 % (200 ms); 300 % (100 ms); 400 % (50 ms); 600 % (20 ms) |
| Capacitive load: | unrestricted |
| Continous output current @ UNominal: | 20 A @ 60 °C, 24 A @ 45°C, 15 A @ 70°C |
| Output current: | 20A |
| Output power: | 480 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...29.5 V (adjustable via potentiometer on front) |
| Overload protection: | Yes |
| Parallel connection option: | yes, max. 3 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 9 ms (Uout: 10%...90%) |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 600% IN for 16 ms |
| Residual ripple, breaking spikes: | max. 20 mVpp @ 24 VDC, IN |
| AC failure bridging time @ Inom: | > 10 ms @ 24 V DC |
| Clip-in foot: | metal |
| Degree of efficiency: | typ. > 93% |
| Housing version: | Metal, corrosion resistant |
| Humidity: | 5...95 %, no condensation |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between., 50 mm clearance at top and bottom for free air circulation, mountable side by side without clearance |
| Operating temperature: | -25 °C...70 °C |
| Power loss, idling: | 3 W |
| Power loss, nominal load: | 40 W |
| Protection against over-heating: | Yes |
| Protection against reverse voltages from the load: | 33…34 V DC |
| Protection degree: | IP20 |
| Protective circuit: | Overtemperature, Short-circuit, Inverse voltage |
| Short-circuit protection: | Yes |
| Start-up: | ≥ -40 °C |
| Surge voltage category: | III |
| Output current: | 20A |
| Limiting of mains voltage harmonic currents: | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g (15 Hz…150 Hz) |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-3 (HF field) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Insulation voltage input / earth: | 1.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 1.5 kV |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Surge voltage category: | III |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 8 AWG |
| Conductor cross-section, AWG/kcmil , min.: | 22 AWG |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 2 for (+, -) |
| Reverse polarity protection: | Yes |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 10 AWG |
| Conductor cross-section, AWG/kcmil , min.: | 26 AWG |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.18 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Number of terminals: | 10 (+ / - / signal) |
| Tightening torque, max.: | 0.5 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Contact load (NO contact): | max. 30 V DC / 0.5 A |
| Floating contact: | Yes |
| Relay on/off: | Output voltage > 21.6 V / < 20.4 V |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO DCDC 480W 24V 20A |
| Order No.: | 2001820000 |
| Version: | DC/DC converter, 24 V |
| GTIN (EAN): | 4050118384000 |
| Qty.: | 1 pc(s). |
| Width: | 75 mm |
| Width (inches): | 2.953 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 120 mm |
| Depth (inches): | 4.724 inch |
| Net weight: | 1,300 g |
| Humidity: | 5...95 %, no condensation |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| MTBF: | 1,000,000 h |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | Screw connection |
| DC input voltage range: | 14...32 V (during operation), 18...32 V (commissioning) |
| Input fuse (internal): | Yes |
| Inrush Current Limitation: | Yes |
| Inrush current: | max. 30 A |
| Rated input voltage: | 24 V DC |
| Recommended back-up fuse: | 40 A, Char. B circuit breaker, 40 A, Char. C circuit breaker |
| DCL - peak load reserve: | 150 % (5 s); 200 % (200 ms); 300 % (100 ms); 400 % (50 ms); 600 % (20 ms) |
| Capacitive load: | unrestricted |
| Continous output current @ UNominal: | 20 A @ 60 °C, 24 A @ 45°C, 15 A @ 70°C |
| Output current: | 20A |
| Output power: | 480 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...29.5 V (adjustable via potentiometer on front) |
| Overload protection: | Yes |
| Parallel connection option: | yes, max. 3 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 9 ms (Uout: 10%...90%) |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 600% IN for 16 ms |
| Residual ripple, breaking spikes: | max. 20 mVpp @ 24 VDC, IN |
| AC failure bridging time @ Inom: | > 10 ms @ 24 V DC |
| Clip-in foot: | metal |
| Degree of efficiency: | typ. > 93% |
| Housing version: | Metal, corrosion resistant |
| Humidity: | 5...95 %, no condensation |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between., 50 mm clearance at top and bottom for free air circulation, mountable side by side without clearance |
| Operating temperature: | -25 °C...70 °C |
| Power loss, idling: | 3 W |
| Power loss, nominal load: | 40 W |
| Protection against over-heating: | Yes |
| Protection against reverse voltages from the load: | 33…34 V DC |
| Protection degree: | IP20 |
| Protective circuit: | Overtemperature, Short-circuit, Inverse voltage |
| Short-circuit protection: | Yes |
| Start-up: | ≥ -40 °C |
| Surge voltage category: | III |
| Output current: | 20A |
| Limiting of mains voltage harmonic currents: | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g (15 Hz…150 Hz) |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-3 (HF field) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Insulation voltage input / earth: | 1.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 1.5 kV |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Surge voltage category: | III |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 8 AWG |
| Conductor cross-section, AWG/kcmil , min.: | 22 AWG |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 2 for (+, -) |
| Reverse polarity protection: | Yes |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 10 AWG |
| Conductor cross-section, AWG/kcmil , min.: | 26 AWG |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.18 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Number of terminals: | 10 (+ / - / signal) |
| Tightening torque, max.: | 0.5 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Contact load (NO contact): | max. 30 V DC / 0.5 A |
| Floating contact: | Yes |
| Relay on/off: | Output voltage > 21.6 V / < 20.4 V |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 2.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
