Product
Weidmueller
1896360000
PNT 2.5/4
Request a Quote

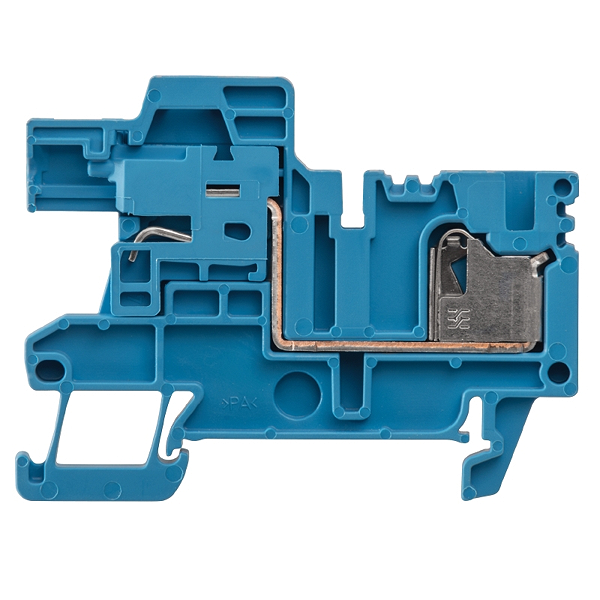

Image copyright: Weidmueller
Weidmueller 1896360000
PNT 2.5/4
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PNT 2.5/4 |
| Order No.: | 1896360000 |
| Version: | Neutral conductor modular terminal, PUSH IN, 4 mm², 250 V, 32 A, blue |
| GTIN (EAN): | 4032248511471 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 63.5 mm |
| Height (inches): | 2.5 inch |
| Depth: | 47.75 mm |
| Depth (inches): | 1.88 inch |
| Depth including DIN rail: | 48.5 mm |
| Net weight: | 10.9 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, with busbar connection 10x3, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 3.0 x 0.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.08 mm² |
| Connection cross-section, finely stranded, max.: | 4 mm² |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 12 mm |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Type of connection: | PUSH IN |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| For N-busbar: | 10 x 3 mm |
| PEN function: | No |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 250 V |
| Rated current: | 32 A |
| Standards: | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | PNT 2.5/4 |
| Order No.: | 1896360000 |
| Version: | Neutral conductor modular terminal, PUSH IN, 4 mm², 250 V, 32 A, blue |
| GTIN (EAN): | 4032248511471 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 63.5 mm |
| Height (inches): | 2.5 inch |
| Depth: | 47.75 mm |
| Depth (inches): | 1.88 inch |
| Depth including DIN rail: | 48.5 mm |
| Net weight: | 10.9 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, with busbar connection 10x3, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 3.0 x 0.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.08 mm² |
| Connection cross-section, finely stranded, max.: | 4 mm² |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 12 mm |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Type of connection: | PUSH IN |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| For N-busbar: | 10 x 3 mm |
| PEN function: | No |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 250 V |
| Rated current: | 32 A |
| Standards: | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.011 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
