Product
Weidmueller
1888130000
ZP 2.5/5 ZVR
Request a Quote

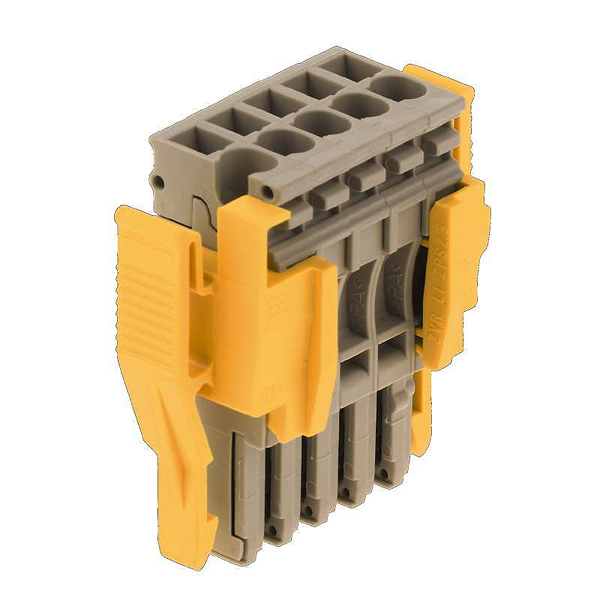

Image copyright: Weidmueller
Weidmueller 1888130000
ZP 2.5/5 ZVR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZP 2.5/5 ZVR |
| Order No.: | 1888130000 |
| Version: | Z-series, Plug-in connector, beige, Direct mounting |
| GTIN (EAN): | 4032248493692 |
| Qty.: | 10 pc(s). |
| Width: | 25.5 mm |
| Width (inches): | 1.004 inch |
| Height: | 23 mm |
| Height (inches): | 0.906 inch |
| Net weight: | 20.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Plug, pluggable, Tension-clamp connection |
| End cover plate required: | No |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Installation advice: | Direct mounting |
| Open sides: | closed |
| Type of mounting: | Plugged |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 5 |
| Stripping length: | 10 mm |
| Type of connection: | Plug-in connection |
| Wire connection cross section AWG, max.: | AWG 26 |
| Wire connection cross section AWG, min.: | AWG 12 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Standards: | IEC 60947-7-1, IEC 61984 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | ZP 2.5/5 ZVR |
| Order No.: | 1888130000 |
| Version: | Z-series, Plug-in connector, beige, Direct mounting |
| GTIN (EAN): | 4032248493692 |
| Qty.: | 10 pc(s). |
| Width: | 25.5 mm |
| Width (inches): | 1.004 inch |
| Height: | 23 mm |
| Height (inches): | 0.906 inch |
| Net weight: | 20.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Plug, pluggable, Tension-clamp connection |
| End cover plate required: | No |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Installation advice: | Direct mounting |
| Open sides: | closed |
| Type of mounting: | Plugged |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 5 |
| Stripping length: | 10 mm |
| Type of connection: | Plug-in connection |
| Wire connection cross section AWG, max.: | AWG 26 |
| Wire connection cross section AWG, min.: | AWG 12 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Standards: | IEC 60947-7-1, IEC 61984 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.021 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
