Weidmueller
1815020000
TS 35X7.5 2M/ST/ZN O.SH
Request a Quote

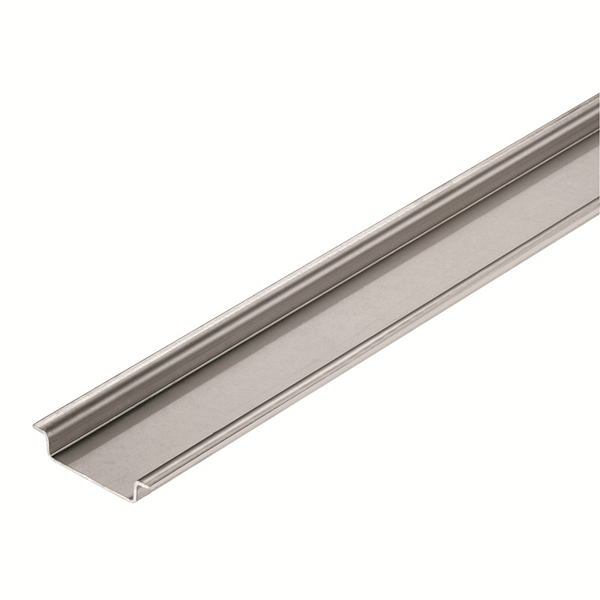

Image copyright: Weidmueller
Weidmueller 1815020000
TS 35X7.5 2M/ST/ZN O.SH
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | TS 35X7.5 2M/ST/ZN O.SH |
| Order No.: | 1815020000 |
| GTIN (EAN): | 4032248305148 |
| Qty.: | 2 m |
| Net weight: | 342 g |
| Short circuit strength corresponds to E-Cu wire: | 16 mm² |
| Short-time withstand current according to IEC 60947-7-2: | 1.92 kA/1s |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| eClass 9.0: | 27-40-06-02 |
| eClass 9.1: | 27-40-06-02 |
| eClass 10.0: | 27-40-06-02 |
| ROHS: | Conform |
| Type: | TS 35X7.5 2M/ST/ZN O.SH |
| Order No.: | 1815020000 |
| GTIN (EAN): | 4032248305148 |
| Qty.: | 2 m |
| Net weight: | 342 g |
| Short circuit strength corresponds to E-Cu wire: | 16 mm² |
| Short-time withstand current according to IEC 60947-7-2: | 1.92 kA/1s |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| eClass 9.0: | 27-40-06-02 |
| eClass 9.1: | 27-40-06-02 |
| eClass 10.0: | 27-40-06-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.35 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
