Product
Weidmueller
1736480000
EA-RING MS/M 16
Request a Quote

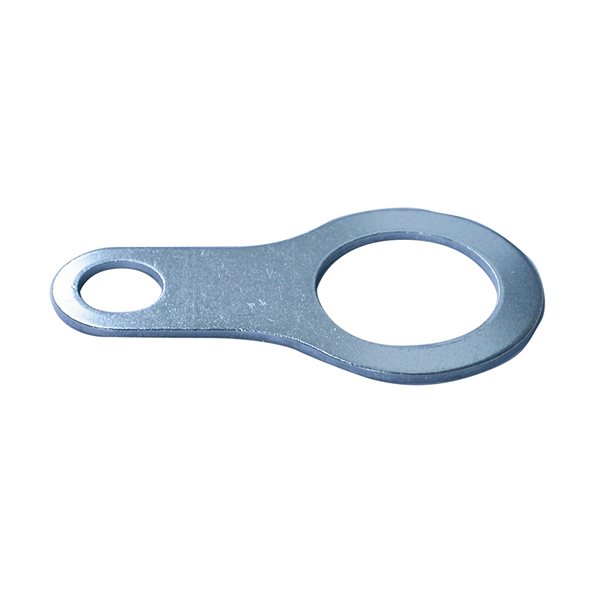

Image copyright: Weidmueller
Weidmueller 1736480000
EA-RING MS/M 16
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | EA-RING MS/M 16 |
| Order No.: | 1736480000 |
| Version: | EA (earthing rings), Earthing ring, M 16, Brass, nickel-plated |
| GTIN (EAN): | 4008190963576 |
| Qty.: | 20 pc(s). |
| Length: | 48.75 mm |
| Length (inches): | 1.919 inch |
| Net weight: | 7.05 g |
| REACH SVHC: | Lead 7439-92-1 |
| Identification: | Ex e II, II 2 GD, EEx d II |
| Material: | Brass, nickel-plated |
| Cable glands: | metric |
| External thread: | M 16 |
| Thickness: | 1.5 mm |
| Gap, internal dimension B: | 30 mm |
| Width, outer dimension C: | 13 mm |
| Inside diameter D2: | 6.75 mm |
| ETIM 6.0: | EC002317 |
| ETIM 7.0: | EC002317 |
| eClass 9.0: | 27-14-44-32 |
| eClass 9.1: | 27-14-44-90 |
| eClass 10.0: | 27-14-44-32 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | EA-RING MS/M 16 |
| Order No.: | 1736480000 |
| Version: | EA (earthing rings), Earthing ring, M 16, Brass, nickel-plated |
| GTIN (EAN): | 4008190963576 |
| Qty.: | 20 pc(s). |
| Length: | 48.75 mm |
| Length (inches): | 1.919 inch |
| Net weight: | 7.05 g |
| REACH SVHC: | Lead 7439-92-1 |
| Identification: | Ex e II, II 2 GD, EEx d II |
| Material: | Brass, nickel-plated |
| Cable glands: | metric |
| External thread: | M 16 |
| Thickness: | 1.5 mm |
| Gap, internal dimension B: | 30 mm |
| Width, outer dimension C: | 13 mm |
| Inside diameter D2: | 6.75 mm |
| ETIM 6.0: | EC002317 |
| ETIM 7.0: | EC002317 |
| eClass 9.0: | 27-14-44-32 |
| eClass 9.1: | 27-14-44-90 |
| eClass 10.0: | 27-14-44-32 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.007 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
