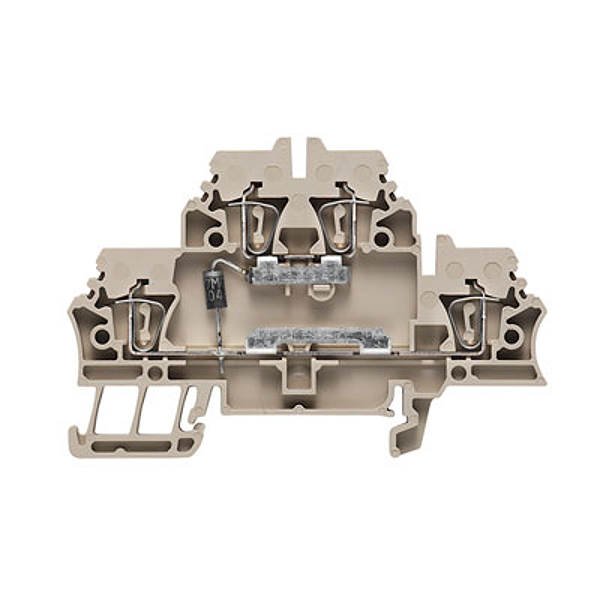

Weidmueller 1713290000
ZDK 2.5/D/8
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Available until: | 2021-01-01 |
| Type: | ZDK 2.5/D/8 |
| Order No.: | 1713290000 |
| Version: | Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige |
| GTIN (EAN): | 4008190334260 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 79.1 mm |
| Height (inches): | 3.114 inch |
| Depth: | 53 mm |
| Depth (inches): | 2.087 inch |
| Depth including DIN rail: | 54 mm |
| Net weight: | 11.7 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, for plug-in cross-connector, One end without connector, with diode |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Electronic component: | Diode |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component 1: | Diode 1N 4007 |
| Component current: | 1 A |
| Component type: | Diode |
| Component voltage: | 1,000 V |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.05 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Twin wire-end ferrules, max.: | 0.34 mm² |
| Twin wire-end ferrules, min.: | 0.14 mm² |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, min.: | AWG 30 |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 50 mm |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 10 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 14 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 14 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Current size C (UR): | 15 A |
| Voltage size C (UR): | 300 V |
| Product information: | The allowed continuous operating temperature must be observed |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Available until: | 2021-01-01 |
| Type: | ZDK 2.5/D/8 |
| Order No.: | 1713290000 |
| Version: | Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige |
| GTIN (EAN): | 4008190334260 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 79.1 mm |
| Height (inches): | 3.114 inch |
| Depth: | 53 mm |
| Depth (inches): | 2.087 inch |
| Depth including DIN rail: | 54 mm |
| Net weight: | 11.7 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, for plug-in cross-connector, One end without connector, with diode |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Electronic component: | Diode |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component 1: | Diode 1N 4007 |
| Component current: | 1 A |
| Component type: | Diode |
| Component voltage: | 1,000 V |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.05 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Twin wire-end ferrules, max.: | 0.34 mm² |
| Twin wire-end ferrules, min.: | 0.14 mm² |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, min.: | AWG 30 |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 50 mm |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 10 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 14 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 14 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Current size C (UR): | 15 A |
| Voltage size C (UR): | 300 V |
| Product information: | The allowed continuous operating temperature must be observed |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.012 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
