Product
Weidmueller
1689430002
VT SF 3/21 MC NE BL V0
Request a Quote

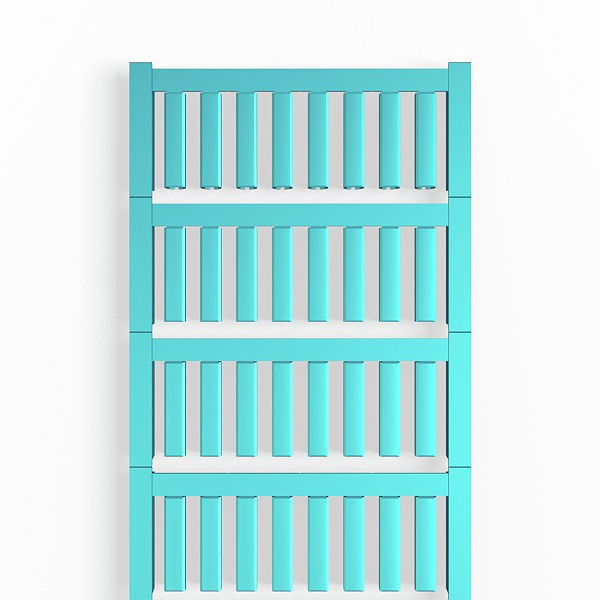

Image copyright: Weidmueller
Weidmueller 1689430002
VT SF 3/21 MC NE BL V0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | VT SF 3/21 MC NE BL V0 |
| Order No.: | 1689430002 |
| Version: | SlimFix, Conductor and cable markers, 3 - 3.7 mm, 21 x 4.6 mm, blue |
| GTIN (EAN): | 4008190872489 |
| Qty.: | 512 pc(s). |
| Width: | 4.6 mm |
| Width (inches): | 0.181 inch |
| Height: | 21 mm |
| Height (inches): | 0.827 inch |
| Depth: | 4.8 mm |
| Depth (inches): | 0.189 inch |
| Net weight: | 0.42 g |
| Colour: | blue |
| Halogen: | No |
| Material: | Polyamide 66 |
| Operating temperature range: | -50...120 °C |
| Recommended industries: | Transportation, Machinery |
| Size of labelling field: | 21 x 4.6 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-0 |
| Width: | 4.6 mm |
| Conductor O.D.: | 3 - 3.7 mm |
| Conductor O.D., max.: | 3.7 mm |
| Conductor O.D., min.: | 3 mm |
| Conductor cross-section, max.: | 2.5 mm² |
| Conductor cross-section, min.: | 1.5 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
| Type: | VT SF 3/21 MC NE BL V0 |
| Order No.: | 1689430002 |
| Version: | SlimFix, Conductor and cable markers, 3 - 3.7 mm, 21 x 4.6 mm, blue |
| GTIN (EAN): | 4008190872489 |
| Qty.: | 512 pc(s). |
| Width: | 4.6 mm |
| Width (inches): | 0.181 inch |
| Height: | 21 mm |
| Height (inches): | 0.827 inch |
| Depth: | 4.8 mm |
| Depth (inches): | 0.189 inch |
| Net weight: | 0.42 g |
| Colour: | blue |
| Halogen: | No |
| Material: | Polyamide 66 |
| Operating temperature range: | -50...120 °C |
| Recommended industries: | Transportation, Machinery |
| Size of labelling field: | 21 x 4.6 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-0 |
| Width: | 4.6 mm |
| Conductor O.D.: | 3 - 3.7 mm |
| Conductor O.D., max.: | 3.7 mm |
| Conductor O.D., min.: | 3 mm |
| Conductor cross-section, max.: | 2.5 mm² |
| Conductor cross-section, min.: | 1.5 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
