Product
Weidmueller
1652010000
ZIA 1.5/4L-1S
Request a Quote

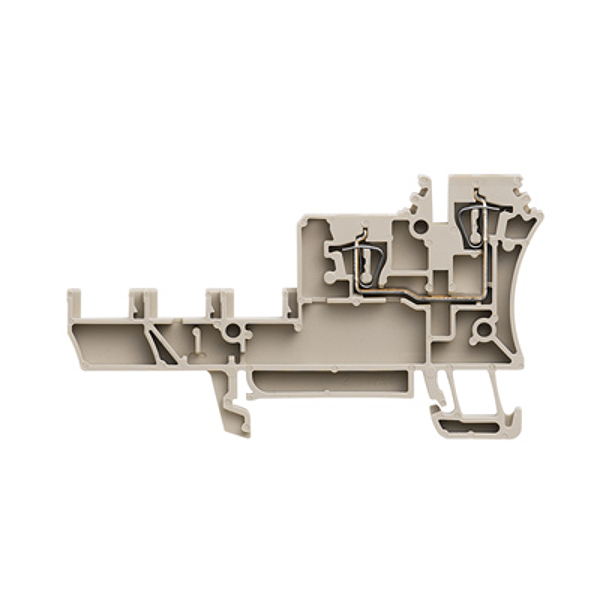

Image copyright: Weidmueller
Weidmueller 1652010000
ZIA 1.5/4L-1S
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZIA 1.5/4L-1S |
| Order No.: | 1652010000 |
| Version: | Initiator/actuator terminal, Tension-clamp connection, 1.5 mm², Flange-mounted housing |
| GTIN (EAN): | 4008190401665 |
| Qty.: | 100 pc(s). |
| Width: | 5.08 mm |
| Width (inches): | 0.2 inch |
| Height: | 81.5 mm |
| Height (inches): | 3.209 inch |
| Depth: | 45.5 mm |
| Depth (inches): | 1.791 inch |
| Depth including DIN rail: | 46 mm |
| Net weight: | 5.96 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Flange-mounted housing |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1068678 |
| Current size B (CSA): | 10 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 14 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A1 |
| Number of connections: | 2 |
| Stripping length: | 7 mm |
| Twin wire-end ferrules, max.: | 0.75 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 40.5 mm |
| PEN function: | No |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 17.5 A |
| Standards: | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 14 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 14 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Current size D (UR): | 10 A |
| Voltage size D (UR): | 300 V |
| ETIM 6.0: | EC000900 |
| ETIM 7.0: | EC000900 |
| eClass 9.0: | 27-14-11-28 |
| eClass 9.1: | 27-14-11-28 |
| eClass 10.0: | 27-14-11-28 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ZIA 1.5/4L-1S |
| Order No.: | 1652010000 |
| Version: | Initiator/actuator terminal, Tension-clamp connection, 1.5 mm², Flange-mounted housing |
| GTIN (EAN): | 4008190401665 |
| Qty.: | 100 pc(s). |
| Width: | 5.08 mm |
| Width (inches): | 0.2 inch |
| Height: | 81.5 mm |
| Height (inches): | 3.209 inch |
| Depth: | 45.5 mm |
| Depth (inches): | 1.791 inch |
| Depth including DIN rail: | 46 mm |
| Net weight: | 5.96 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Flange-mounted housing |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1068678 |
| Current size B (CSA): | 10 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 14 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A1 |
| Number of connections: | 2 |
| Stripping length: | 7 mm |
| Twin wire-end ferrules, max.: | 0.75 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 40.5 mm |
| PEN function: | No |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 17.5 A |
| Standards: | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 14 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 14 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Current size D (UR): | 10 A |
| Voltage size D (UR): | 300 V |
| ETIM 6.0: | EC000900 |
| ETIM 7.0: | EC000900 |
| eClass 9.0: | 27-14-11-28 |
| eClass 9.1: | 27-14-11-28 |
| eClass 10.0: | 27-14-11-28 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.006 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
