Product
Weidmueller
1562220000
WPD 107 1X95/2X35+8X25 GY
Request a Quote

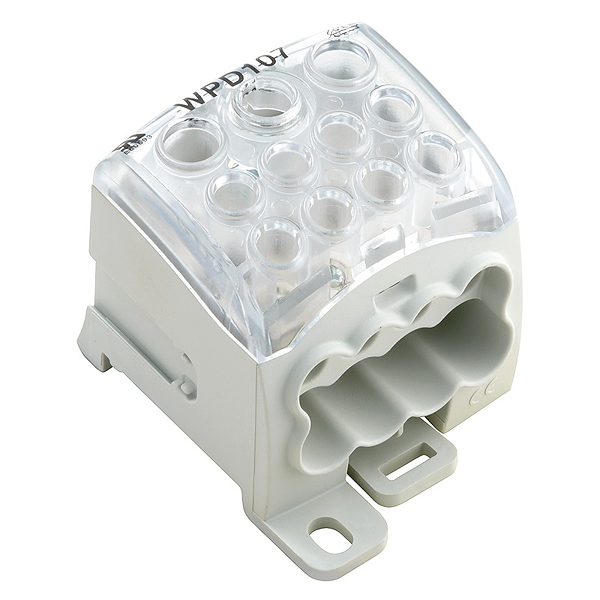

Image copyright: Weidmueller
Weidmueller 1562220000
WPD 107 1X95/2X35+8X25 GY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WPD 107 1X95/2X35+8X25 GY |
| Order No.: | 1562220000 |
| Version: | W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate |
| GTIN (EAN): | 4050118385298 |
| Qty.: | 1 pc(s). |
| Width: | 51 mm |
| Width (inches): | 2.008 inch |
| Height: | 73 mm |
| Height (inches): | 2.874 inch |
| Depth: | 54.5 mm |
| Depth (inches): | 2.146 inch |
| Net weight: | 211 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | Light Grey |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | CNEX16ATEX0005U |
| Certificate No. (IECEX): | IECEXCNEX16.0005U |
| Max. voltage (ATEX): | 440 V |
| Current (ATEX): | 232 A |
| Wire cross section max. (ATEX): | 95 mm² |
| Max. voltage (IECEX): | 440 V |
| Current (IECEX): | 232 A |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| Rail: | Mounting plate, TS 35 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Installation advice: | Terminal rail / mounting plate |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Connection direction: | on side |
| Type of connection: | Screw connection |
| Rated AC voltage: | 1,000 V |
| Rated DC voltage: | 1,000 V DC |
| Rated current: | 232 A |
| Current at maximum wires: | 232 A |
| Standards: | IEC 60947-7-1, UL 1059 |
| Certificate No. (UR): | E60693 |
| Product information: | Power distribution block (Bus Bar) also usable for distribution of neutral conductor and function earth. |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WPD 107 1X95/2X35+8X25 GY |
| Order No.: | 1562220000 |
| Version: | W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate |
| GTIN (EAN): | 4050118385298 |
| Qty.: | 1 pc(s). |
| Width: | 51 mm |
| Width (inches): | 2.008 inch |
| Height: | 73 mm |
| Height (inches): | 2.874 inch |
| Depth: | 54.5 mm |
| Depth (inches): | 2.146 inch |
| Net weight: | 211 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | Light Grey |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | CNEX16ATEX0005U |
| Certificate No. (IECEX): | IECEXCNEX16.0005U |
| Max. voltage (ATEX): | 440 V |
| Current (ATEX): | 232 A |
| Wire cross section max. (ATEX): | 95 mm² |
| Max. voltage (IECEX): | 440 V |
| Current (IECEX): | 232 A |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| Rail: | Mounting plate, TS 35 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Installation advice: | Terminal rail / mounting plate |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Connection direction: | on side |
| Type of connection: | Screw connection |
| Rated AC voltage: | 1,000 V |
| Rated DC voltage: | 1,000 V DC |
| Rated current: | 232 A |
| Current at maximum wires: | 232 A |
| Standards: | IEC 60947-7-1, UL 1059 |
| Certificate No. (UR): | E60693 |
| Product information: | Power distribution block (Bus Bar) also usable for distribution of neutral conductor and function earth. |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.227 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
