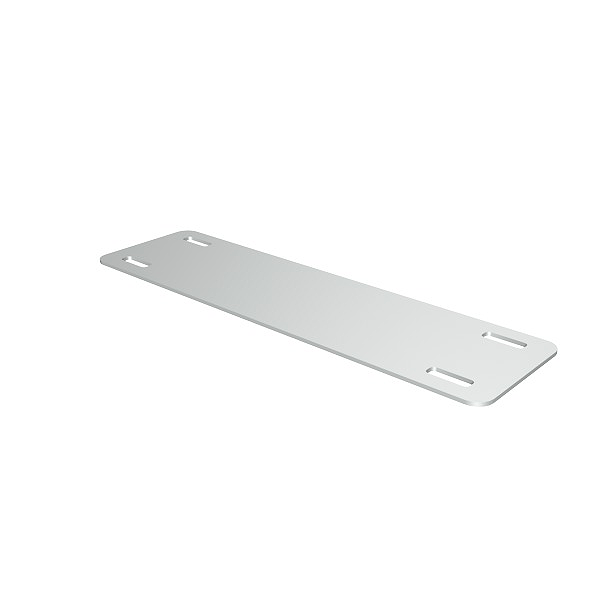

Weidmueller 1500250000
SFX-M 17/60-5 AL
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SFX-M 17/60-5 AL |
| Order No.: | 1500250000 |
| Version: | MetalliCard, Conductor and cable markers, 7 - 40 mm, 60 x 17 mm, silver |
| GTIN (EAN): | 4050118308778 |
| Qty.: | 50 pc(s). |
| Width: | 17 mm |
| Width (inches): | 0.669 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 0.8 mm |
| Depth (inches): | 0.031 inch |
| Net weight: | 1.54 g |
| Colour: | silver |
| Material: | Chrome coated aluminium (AL) |
| Operating temperature range: | -55...130 °C |
| Recommended industries: | Process, Energy |
| Width: | 17 mm |
| Conductor O.D.: | 7 - 40 mm |
| Conductor O.D., max.: | 40 mm |
| Conductor O.D., min.: | 7 mm |
| Conductor cross-section, max.: | 500 mm² |
| Conductor cross-section, min.: | 16 mm² |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
| Type: | SFX-M 17/60-5 AL |
| Order No.: | 1500250000 |
| Version: | MetalliCard, Conductor and cable markers, 7 - 40 mm, 60 x 17 mm, silver |
| GTIN (EAN): | 4050118308778 |
| Qty.: | 50 pc(s). |
| Width: | 17 mm |
| Width (inches): | 0.669 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 0.8 mm |
| Depth (inches): | 0.031 inch |
| Net weight: | 1.54 g |
| Colour: | silver |
| Material: | Chrome coated aluminium (AL) |
| Operating temperature range: | -55...130 °C |
| Recommended industries: | Process, Energy |
| Width: | 17 mm |
| Conductor O.D.: | 7 - 40 mm |
| Conductor O.D., max.: | 40 mm |
| Conductor O.D., min.: | 7 mm |
| Conductor cross-section, max.: | 500 mm² |
| Conductor cross-section, min.: | 16 mm² |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.002 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
