1478200000
PRO MAX3 960W 24V 40A
Request a Quote
Image copyright: Weidmueller

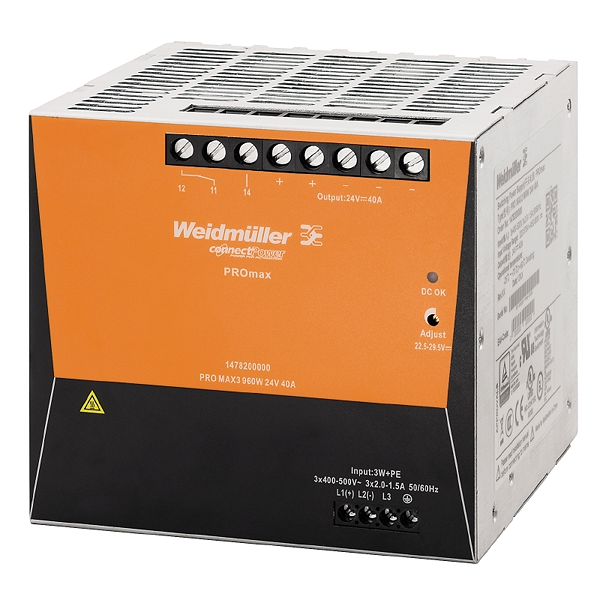

Weidmueller 1478200000
PRO MAX3 960W 24V 40A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PRO MAX3 960W 24V 40A |
| Order No.: | 1478200000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118286076 |
| Qty.: | 1 pc(s). |
| Width: | 140 mm |
| Width (inches): | 5.512 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 3,400 g |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E255651 |
| Altitude: | 3000m, 3000-6000m derating, @ 6000m 75% Load |
| AC current consumption: | 1,3A @ 3*500 VAC / 1,6A @ 3*400 VAC |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | Screw connection |
| DC current consumption: | 1.4 A @ 800 V DC / 2.4 A @ 450 V DC |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 15 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Recommended back-up fuse: | 6...8 A, char. C circuit breaker |
| Standby power consumption, max.: | 1 W |
| Surge protection: | Varistor |
| Connection system: | Screw connection |
| Continous output current @ UNominal: | 48 A @ 45°C, 30 A @ 70°C |
| Current capacity (pulse) @ UNominal: | 120 A (2ms) |
| Nominal output current for Unom: | 40 A @ 60 °C |
| Output power: | 960 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...29.5 V (adjustable via potentiometer) |
| Parallel connection option: | yes, max. 3 |
| Protection against inverse voltage: | Yes |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 48 A (1 min), 60 A (4s), 400…500 V AC |
| AC failure bridging time @ Inom: | min. 20 ms |
| Degree of efficiency: | 93.5% |
| Derating: | > 60°C / 75% @ 70°C |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | >500.000h (25°C, IEC 61709 (SN29500)) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.75 @ 3x400 V AC |
| Power loss, idling: | 9 W |
| Power loss, nominal load: | 66.7 W |
| Protection against reverse voltages from the load: | 30…35 V DC |
| Protection degree: | IP20 |
| Series switching capability: | Yes |
| Short-circuit protection: | Yes |
| Start-up: | ≥ -40 °C |
| Status indication: | LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off) |
| Surge voltage category: | III |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g |
| Interference immunity test acc. to: | EN 55024, EN 55032, IEC61000-3-2,-3, IEC61000-4-2,-3,-4,-5,-6,-8,-11 |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Insulation voltage input / earth: | 3.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 4 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Surge voltage category: | III |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204, IEC61204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Screwdriver blade: | 0.8 x 4.0, PZ 1 |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 4 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 8 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , max.: | 16 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 8 (++,---,11,13,14) |
| Screwdriver blade: | 1.0 x 5.5 |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Contact load (NO contact): | max. 30 V DC / 1 A |
| Floating contact: | Yes |
| Status indication: | LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off) |
| Certificate No. (GERMLLOYD): | TAA00000TT |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| Certificate No. (cURus): | E255651 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO MAX3 960W 24V 40A |
| Order No.: | 1478200000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118286076 |
| Qty.: | 1 pc(s). |
| Width: | 140 mm |
| Width (inches): | 5.512 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 3,400 g |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E255651 |
| Altitude: | 3000m, 3000-6000m derating, @ 6000m 75% Load |
| AC current consumption: | 1,3A @ 3*500 VAC / 1,6A @ 3*400 VAC |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | Screw connection |
| DC current consumption: | 1.4 A @ 800 V DC / 2.4 A @ 450 V DC |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 15 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Recommended back-up fuse: | 6...8 A, char. C circuit breaker |
| Standby power consumption, max.: | 1 W |
| Surge protection: | Varistor |
| Connection system: | Screw connection |
| Continous output current @ UNominal: | 48 A @ 45°C, 30 A @ 70°C |
| Current capacity (pulse) @ UNominal: | 120 A (2ms) |
| Nominal output current for Unom: | 40 A @ 60 °C |
| Output power: | 960 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...29.5 V (adjustable via potentiometer) |
| Parallel connection option: | yes, max. 3 |
| Protection against inverse voltage: | Yes |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 48 A (1 min), 60 A (4s), 400…500 V AC |
| AC failure bridging time @ Inom: | min. 20 ms |
| Degree of efficiency: | 93.5% |
| Derating: | > 60°C / 75% @ 70°C |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | >500.000h (25°C, IEC 61709 (SN29500)) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.75 @ 3x400 V AC |
| Power loss, idling: | 9 W |
| Power loss, nominal load: | 66.7 W |
| Protection against reverse voltages from the load: | 30…35 V DC |
| Protection degree: | IP20 |
| Series switching capability: | Yes |
| Short-circuit protection: | Yes |
| Start-up: | ≥ -40 °C |
| Status indication: | LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off) |
| Surge voltage category: | III |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g |
| Interference immunity test acc. to: | EN 55024, EN 55032, IEC61000-3-2,-3, IEC61000-4-2,-3,-4,-5,-6,-8,-11 |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Insulation voltage input / earth: | 3.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 4 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Surge voltage category: | III |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204, IEC61204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Screwdriver blade: | 0.8 x 4.0, PZ 1 |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 4 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 8 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , max.: | 16 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 8 (++,---,11,13,14) |
| Screwdriver blade: | 1.0 x 5.5 |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Contact load (NO contact): | max. 30 V DC / 1 A |
| Floating contact: | Yes |
| Status indication: | LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off) |
| Certificate No. (GERMLLOYD): | TAA00000TT |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| Certificate No. (cURus): | E255651 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
