Product
Weidmueller
1469530000
PRO ECO3 120W 24V 5A
Request a Quote

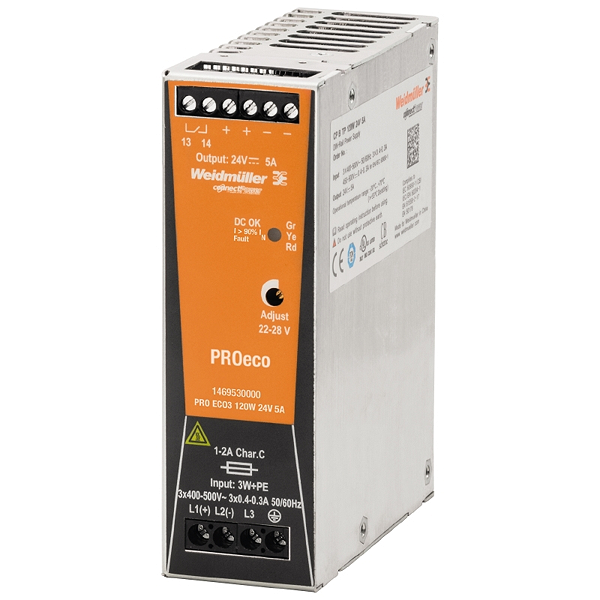

Image copyright: Weidmueller
Weidmueller 1469530000
PRO ECO3 120W 24V 5A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PRO ECO3 120W 24V 5A |
| Order No.: | 1469530000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118275735 |
| Qty.: | 1 pc(s). |
| Width: | 40 mm |
| Width (inches): | 1.575 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 100 mm |
| Depth (inches): | 3.937 inch |
| Net weight: | 685 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Altitude: | ≤ 3000 m |
| AC current consumption: | 0.3 A @ 3 x 500 V AC / 0.4 A @ 3 x 400 V AC |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | Screw connection |
| DC current consumption: | 0.2 A @ 800 V DC / 0.4 A @ 450 V DC |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 47...63 Hz |
| Input frequency: | 47...63 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 40 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Surge protection: | Varistor |
| Capacitive load: | unrestricted |
| Connection system: | Screw connection |
| Continous output current @ UNominal: | 5 A @ 55 °C, 3,75 A @ 70 °C |
| Nominal output current for Unom: | 5 A at 55 °C |
| Output power: | 120 W |
| Output voltage: | 24 V |
| Output voltage: | 22...28 V (adjustable via potentiometer) |
| Overload protection: | Yes |
| Parallel connection option: | yes, max. 5 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 24 V DC ± 1 % |
| AC failure bridging time @ Inom: | > 40 ms @ 3 x 500 V AC / > 20 ms @ 3 x 400 V AC |
| Degree of efficiency: | 87 % |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Mounting position, installation notice: | on terminal rail TS 35 |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC |
| Power loss, idling: | 6 W |
| Power loss, nominal load: | 17 W |
| Protection against over-heating: | Yes |
| Protection against reverse voltages from the load: | 30…35 V DC |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Limiting of mains voltage harmonic currents: | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 1 g according to EN 50178 |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Insulation voltage input / earth: | 2 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 3 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 6 (++,--,13,14) |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Contact load (NO contact): | max. 30 V DC / 1 A |
| Floating contact: | Yes |
| Relay on/off: | Output voltage >21.6 V DC/ <20.4 V DC, overload |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO ECO3 120W 24V 5A |
| Order No.: | 1469530000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118275735 |
| Qty.: | 1 pc(s). |
| Width: | 40 mm |
| Width (inches): | 1.575 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 100 mm |
| Depth (inches): | 3.937 inch |
| Net weight: | 685 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Altitude: | ≤ 3000 m |
| AC current consumption: | 0.3 A @ 3 x 500 V AC / 0.4 A @ 3 x 400 V AC |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | Screw connection |
| DC current consumption: | 0.2 A @ 800 V DC / 0.4 A @ 450 V DC |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 47...63 Hz |
| Input frequency: | 47...63 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 40 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Surge protection: | Varistor |
| Capacitive load: | unrestricted |
| Connection system: | Screw connection |
| Continous output current @ UNominal: | 5 A @ 55 °C, 3,75 A @ 70 °C |
| Nominal output current for Unom: | 5 A at 55 °C |
| Output power: | 120 W |
| Output voltage: | 24 V |
| Output voltage: | 22...28 V (adjustable via potentiometer) |
| Overload protection: | Yes |
| Parallel connection option: | yes, max. 5 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 24 V DC ± 1 % |
| AC failure bridging time @ Inom: | > 40 ms @ 3 x 500 V AC / > 20 ms @ 3 x 400 V AC |
| Degree of efficiency: | 87 % |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Mounting position, installation notice: | on terminal rail TS 35 |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC |
| Power loss, idling: | 6 W |
| Power loss, nominal load: | 17 W |
| Protection against over-heating: | Yes |
| Protection against reverse voltages from the load: | 30…35 V DC |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Limiting of mains voltage harmonic currents: | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 1 g according to EN 50178 |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Insulation voltage input / earth: | 2 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 3 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 6 (++,--,13,14) |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Contact load (NO contact): | max. 30 V DC / 1 A |
| Floating contact: | Yes |
| Relay on/off: | Output voltage >21.6 V DC/ <20.4 V DC, overload |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.689 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
