Product
Weidmueller
1412970000
WDU 6 HV
Request a Quote

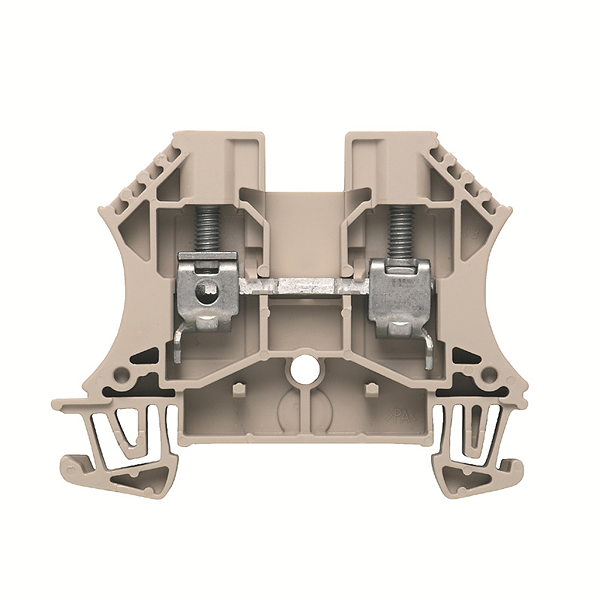

Image copyright: Weidmueller
Weidmueller 1412970000
WDU 6 HV
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WDU 6 HV |
| Order No.: | 1412970000 |
| Version: | Feed-through terminal, Screw connection, 6 mm², 1000 V, 41 A, dark beige |
| GTIN (EAN): | 4050118237023 |
| Qty.: | 100 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 46.5 mm |
| Depth (inches): | 1.831 inch |
| Depth including DIN rail: | 47 mm |
| Weight: | 12 g |
| Net weight: | 12.75 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Cross-section for connected wire, solid, two clampable wires, min.: | 0.5 mm² |
| Cross-section for connected wire, solid, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 2.5 mm² |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.8 x 4.0 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.22 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Twin wire-end ferrules, max.: | 4 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WDU 6 HV |
| Order No.: | 1412970000 |
| Version: | Feed-through terminal, Screw connection, 6 mm², 1000 V, 41 A, dark beige |
| GTIN (EAN): | 4050118237023 |
| Qty.: | 100 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 46.5 mm |
| Depth (inches): | 1.831 inch |
| Depth including DIN rail: | 47 mm |
| Weight: | 12 g |
| Net weight: | 12.75 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Cross-section for connected wire, solid, two clampable wires, min.: | 0.5 mm² |
| Cross-section for connected wire, solid, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 2.5 mm² |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.8 x 4.0 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.22 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Twin wire-end ferrules, max.: | 4 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.014 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
