Weidmueller
1370050010
CP DC UPS 24V 20A/10A
Request a Quote

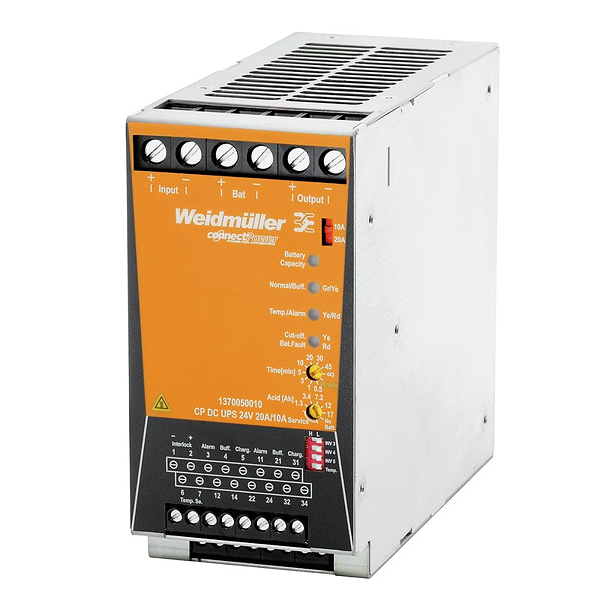

Image copyright: Weidmueller
Weidmueller 1370050010
CP DC UPS 24V 20A/10A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CP DC UPS 24V 20A/10A |
| Order No.: | 1370050010 |
| Version: | UPS control unit |
| GTIN (EAN): | 4050118202335 |
| Qty.: | 1 pc(s). |
| Width: | 66 |
| Width (inches): | 2.598 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 1,146 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Parallel connection option: | Yes, max. 2 |
| Rated voltage: | 24 V |
| Storage medium: | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch |
| Battery availability test: | every minute |
| Charging current: | 0.15 CA |
| Charging feature: | IU characteristic curve |
| Charging voltage (temperature compensated): | 27, 48 V @ 20°C |
| Temperature coefficient: | - 48 mV / °C |
| DIP switch: | Inversion of transistor outputs, Operation without temperature probe |
| Output current selector switch: | 20 A, 10 A |
| Remote disconnection (Interlock): | Yes |
| Selector switch battery: | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, No Battery, Service |
| Selector switch buffer times: | 0.5 min, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min, 45 min, ∞, ∞ w/0 |
| Temperature probe: | NTC 100 kΩ |
| DC current consumption: | max. 200 mA (without battery), max. 0.5 A (with fully charged battery) |
| DC input voltage range: | 20...30 V DC |
| Input current: | ≤ 13A (for 10A), ≤ 23A (for 20A) |
| Input fuse (internal): | Yes |
| Max. approved input current: | 28 A |
| Rated input voltage: | 24 V DC |
| Wire connection method: | Screw connection |
| Continous output current @ UNominal: | 24 A @ 45 °C, 20 A @ 60 °C, 15 A @ 70 °C |
| Nominal output current for Unom: | 20 A @ 60 °C |
| Output current, max.: | 24 A |
| Output voltage: | Vo = Vin - 0.2 V normal operation (Imax), Vo = Vin - 0.3 V battery supply (I max) |
| Overload protection: | Yes |
| Parallel connection option: | Yes, max. 2, Yes, with diode module |
| Protection against inverse voltage: | Yes |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 24 A for 1 min, ED = 5 % |
| Temperature coefficient: | - 48 mV / °C |
| Temperature probe: | NTC 100 kΩ |
| Wire connection method: | Screw connection |
| Buffer times: | Depending on the connected battery |
| Clip-in foot: | metal |
| Degree of efficiency: | ≥ 96% normal mode, battery is being charged, ≥ 98% normal mode, battery is charged, ≥ 98% buffer mode |
| Housing version: | Metal, corrosion resistant |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Power loss: | < 10 W |
| Protection against reverse voltages from the load: | 32…34 V DC |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Storage medium: | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch |
| Surge voltage category: | III |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage: | 1 kV DC |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Surge voltage category: | III |
| electrical isolation, input-earth: | 1 kV |
| electrical isolation, output-earth: | 1 kV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | EN 60950 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Reverse polarity protection: | Yes |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 16 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.6 mm² |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Wire connection cross-section, flexible (signal), max.: | 16 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.5 mm² |
| Wire connection method: | Screw connection |
| Wire cross-section, AWG/kcmil , max.: | 12 |
| Wire cross-section, AWG/kcmil , min.: | 26 |
| Wire cross-section, solid , max.: | 16 mm² |
| Wire cross-section, solid , min.: | 0.5 mm² |
| Floating contact: | Yes |
| Status indicator: | Three-colour LED: Battery capacity >85% green, >40% yellow, >20% red, <20% red (Flashing), Green/yellow LED: normal / buffering, Yellow/red LED: temperature alarm / alarm, Yellow/red LED: switch-off / battery fault |
| Status relay (max. load): | Fault (alarm) (30 V AC/DC 0.1 A), Battery operation (buff.) (30 V AC/DC 0.1 A), Laden (Charg.) (30V AC/DC 0,1A) |
| Certificate No. (GERMLLOYD): | 61934-14 |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002850 |
| ETIM 7.0: | EC002850 |
| eClass 9.0: | 27-04-06-92 |
| eClass 9.1: | 27-04-92-01 |
| eClass 10.0: | 27-04-06-92 |
| ROHS: | Conform |

| Type: | CP DC UPS 24V 20A/10A |
| Order No.: | 1370050010 |
| Version: | UPS control unit |
| GTIN (EAN): | 4050118202335 |
| Qty.: | 1 pc(s). |
| Width: | 66 |
| Width (inches): | 2.598 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 1,146 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Parallel connection option: | Yes, max. 2 |
| Rated voltage: | 24 V |
| Storage medium: | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch |
| Battery availability test: | every minute |
| Charging current: | 0.15 CA |
| Charging feature: | IU characteristic curve |
| Charging voltage (temperature compensated): | 27, 48 V @ 20°C |
| Temperature coefficient: | - 48 mV / °C |
| DIP switch: | Inversion of transistor outputs, Operation without temperature probe |
| Output current selector switch: | 20 A, 10 A |
| Remote disconnection (Interlock): | Yes |
| Selector switch battery: | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, No Battery, Service |
| Selector switch buffer times: | 0.5 min, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min, 45 min, ∞, ∞ w/0 |
| Temperature probe: | NTC 100 kΩ |
| DC current consumption: | max. 200 mA (without battery), max. 0.5 A (with fully charged battery) |
| DC input voltage range: | 20...30 V DC |
| Input current: | ≤ 13A (for 10A), ≤ 23A (for 20A) |
| Input fuse (internal): | Yes |
| Max. approved input current: | 28 A |
| Rated input voltage: | 24 V DC |
| Wire connection method: | Screw connection |
| Continous output current @ UNominal: | 24 A @ 45 °C, 20 A @ 60 °C, 15 A @ 70 °C |
| Nominal output current for Unom: | 20 A @ 60 °C |
| Output current, max.: | 24 A |
| Output voltage: | Vo = Vin - 0.2 V normal operation (Imax), Vo = Vin - 0.3 V battery supply (I max) |
| Overload protection: | Yes |
| Parallel connection option: | Yes, max. 2, Yes, with diode module |
| Protection against inverse voltage: | Yes |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 24 A for 1 min, ED = 5 % |
| Temperature coefficient: | - 48 mV / °C |
| Temperature probe: | NTC 100 kΩ |
| Wire connection method: | Screw connection |
| Buffer times: | Depending on the connected battery |
| Clip-in foot: | metal |
| Degree of efficiency: | ≥ 96% normal mode, battery is being charged, ≥ 98% normal mode, battery is charged, ≥ 98% buffer mode |
| Housing version: | Metal, corrosion resistant |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Power loss: | < 10 W |
| Protection against reverse voltages from the load: | 32…34 V DC |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Storage medium: | 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch |
| Surge voltage category: | III |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage: | 1 kV DC |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Surge voltage category: | III |
| electrical isolation, input-earth: | 1 kV |
| electrical isolation, output-earth: | 1 kV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | EN 60950 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Reverse polarity protection: | Yes |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 16 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.6 mm² |
| Tightening torque, max.: | 1.5 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Wire connection cross-section, flexible (signal), max.: | 16 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.5 mm² |
| Wire connection method: | Screw connection |
| Wire cross-section, AWG/kcmil , max.: | 12 |
| Wire cross-section, AWG/kcmil , min.: | 26 |
| Wire cross-section, solid , max.: | 16 mm² |
| Wire cross-section, solid , min.: | 0.5 mm² |
| Floating contact: | Yes |
| Status indicator: | Three-colour LED: Battery capacity >85% green, >40% yellow, >20% red, <20% red (Flashing), Green/yellow LED: normal / buffering, Yellow/red LED: temperature alarm / alarm, Yellow/red LED: switch-off / battery fault |
| Status relay (max. load): | Fault (alarm) (30 V AC/DC 0.1 A), Battery operation (buff.) (30 V AC/DC 0.1 A), Laden (Charg.) (30V AC/DC 0,1A) |
| Certificate No. (GERMLLOYD): | 61934-14 |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002850 |
| ETIM 7.0: | EC002850 |
| eClass 9.0: | 27-04-06-92 |
| eClass 9.1: | 27-04-92-01 |
| eClass 10.0: | 27-04-06-92 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.151 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
