Product
Weidmueller
1319280000
SCS 24VDC P2SIL3ES
Request a Quote

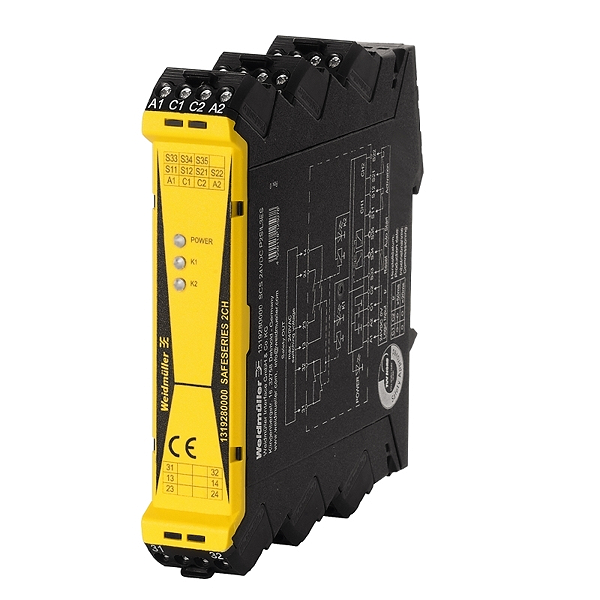

Image copyright: Weidmueller
Weidmueller 1319280000
SCS 24VDC P2SIL3ES
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SCS 24VDC P2SIL3ES |
| Order No.: | 1319280000 |
| Version: | SAFESERIES, Safety relay,24 V DC ±15 %, 24 VDC +15% / -10% during auto-start, 35 mA, 6, SIL 3, DIN EN 61508, EN ISO 13849-1 (PLe) |
| GTIN (EAN): | 4050118125078 |
| Qty.: | 1 pc(s). |
| Width: | 22.5 mm |
| Width (inches): | 0.886 inch |
| Height: | 119.6 mm |
| Height (inches): | 4.709 inch |
| Depth: | 114.1 mm |
| Depth (inches): | 4.492 inch |
| Net weight: | 292 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection designation: | A1, A2, C1, C2 |
| Rated control voltage: | 24 V DC ±15 %, 24 VDC +15% / -10% during auto-start |
| Current consumption: | 55 mA (release circuit enabled), 6 mA (release circuit not enabled) |
| Guaranteed current consumption at 24 V DC -10%: | 35 mA |
| Inrush current: | 750 mA / 5 ms (for starting with S33/S34 (start circuit)), 2 A / 20 ms (for starting with A1/A2 (autostart)) |
| Response time: | with bridge via C1/C2: typ. 50 ms, without bridge via C1/C2: typ. 20 ms |
| Status display: | LED green: supply, Yellow LED: signal |
| Protective circuit: | Reverse polarity protection, Free-wheeling diode |
| Short-circuit detection: | Yes, max. 4 s up to disconnection (thermistor) |
| Anschlussbezeichnung: | S33, S34, S35 |
| Operating voltage: | 22 V DC, from internal power supply |
| Function: | falling edge (button via S33/S34), rising edge (permanent bridge via S33/S35) |
| Connection designation: | S11, S12, S21, S22 |
| Input: | 2, each externally bridgeable |
| Operating voltage: | 22 V DC, from internal power supply |
| External back-up fuse: | 5 A time lag |
| Connection designation: | 13, 14, 23, 24 |
| Contact design: | 2 NO positively-driven (EN 50205 type B) |
| Contact base material: | AgSnO |
| Switching voltage AC, max.: | 250 V |
| Max. permissible switching current: | 6 A |
| Max. switching current, external fuse: | 5 A |
| Max. switching capacity: | 2000 VA |
| External back-up fuse: | 5 A time lag |
| Turn-on time: | 55 ms (C1/C2 bridged, switched via A1/A2), 30 ms (opening/closing of monitoring circuit) |
| Turn-off time: | 55 ms (C1/C2 bridged, switched via A1/A2), 15 ms (opening/closing of monitoring circuit) |
| Min. switching capacity: | 10 mA @ 12 V |
| Connection designation: | 31, 32 |
| Contact design: | 1 NC positively-driven (EN 50205 type B) |
| Switching voltage AC, max.: | 250 V |
| Max. switching current.: | 1 A |
| Device type: | A |
| Hardware fault tolerance (HFT): | 1 |
| Tproof: | 12 Years |
| Safety category: | SIL 3 |
| Safety standard: | DIN EN 61508, EN ISO 13849-1 (PLe) |
| Rail: | TS 35 |
| Colour: | black, yellow |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 5.5 mm |
| Creepage and clearance distance output – output: | ≥ 5.5 mm |
| Impulse withstand voltage: | 6 kV (1.2/50 µs) |
| Standards: | EN 50178, EN 61000, EN 61326-3-2, EN ISO 13849-1 (PLe) |
| Equipment for furnaces: | EN 50156 |
| Wire connection method: | Screw connection |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Blade size: | size PH0 |
| ETIM 6.0: | EC001449 |
| ETIM 7.0: | EC001449 |
| eClass 9.0: | 27-37-18-19 |
| eClass 9.1: | 27-37-18-19 |
| eClass 10.0: | 27-37-18-19 |
| ROHS: | Conform |
| Type: | SCS 24VDC P2SIL3ES |
| Order No.: | 1319280000 |
| Version: | SAFESERIES, Safety relay,24 V DC ±15 %, 24 VDC +15% / -10% during auto-start, 35 mA, 6, SIL 3, DIN EN 61508, EN ISO 13849-1 (PLe) |
| GTIN (EAN): | 4050118125078 |
| Qty.: | 1 pc(s). |
| Width: | 22.5 mm |
| Width (inches): | 0.886 inch |
| Height: | 119.6 mm |
| Height (inches): | 4.709 inch |
| Depth: | 114.1 mm |
| Depth (inches): | 4.492 inch |
| Net weight: | 292 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection designation: | A1, A2, C1, C2 |
| Rated control voltage: | 24 V DC ±15 %, 24 VDC +15% / -10% during auto-start |
| Current consumption: | 55 mA (release circuit enabled), 6 mA (release circuit not enabled) |
| Guaranteed current consumption at 24 V DC -10%: | 35 mA |
| Inrush current: | 750 mA / 5 ms (for starting with S33/S34 (start circuit)), 2 A / 20 ms (for starting with A1/A2 (autostart)) |
| Response time: | with bridge via C1/C2: typ. 50 ms, without bridge via C1/C2: typ. 20 ms |
| Status display: | LED green: supply, Yellow LED: signal |
| Protective circuit: | Reverse polarity protection, Free-wheeling diode |
| Short-circuit detection: | Yes, max. 4 s up to disconnection (thermistor) |
| Anschlussbezeichnung: | S33, S34, S35 |
| Operating voltage: | 22 V DC, from internal power supply |
| Function: | falling edge (button via S33/S34), rising edge (permanent bridge via S33/S35) |
| Connection designation: | S11, S12, S21, S22 |
| Input: | 2, each externally bridgeable |
| Operating voltage: | 22 V DC, from internal power supply |
| External back-up fuse: | 5 A time lag |
| Connection designation: | 13, 14, 23, 24 |
| Contact design: | 2 NO positively-driven (EN 50205 type B) |
| Contact base material: | AgSnO |
| Switching voltage AC, max.: | 250 V |
| Max. permissible switching current: | 6 A |
| Max. switching current, external fuse: | 5 A |
| Max. switching capacity: | 2000 VA |
| External back-up fuse: | 5 A time lag |
| Turn-on time: | 55 ms (C1/C2 bridged, switched via A1/A2), 30 ms (opening/closing of monitoring circuit) |
| Turn-off time: | 55 ms (C1/C2 bridged, switched via A1/A2), 15 ms (opening/closing of monitoring circuit) |
| Min. switching capacity: | 10 mA @ 12 V |
| Connection designation: | 31, 32 |
| Contact design: | 1 NC positively-driven (EN 50205 type B) |
| Switching voltage AC, max.: | 250 V |
| Max. switching current.: | 1 A |
| Device type: | A |
| Hardware fault tolerance (HFT): | 1 |
| Tproof: | 12 Years |
| Safety category: | SIL 3 |
| Safety standard: | DIN EN 61508, EN ISO 13849-1 (PLe) |
| Rail: | TS 35 |
| Colour: | black, yellow |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 5.5 mm |
| Creepage and clearance distance output – output: | ≥ 5.5 mm |
| Impulse withstand voltage: | 6 kV (1.2/50 µs) |
| Standards: | EN 50178, EN 61000, EN 61326-3-2, EN ISO 13849-1 (PLe) |
| Equipment for furnaces: | EN 50156 |
| Wire connection method: | Screw connection |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Blade size: | size PH0 |
| ETIM 6.0: | EC001449 |
| ETIM 7.0: | EC001449 |
| eClass 9.0: | 27-37-18-19 |
| eClass 9.1: | 27-37-18-19 |
| eClass 10.0: | 27-37-18-19 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.295 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
