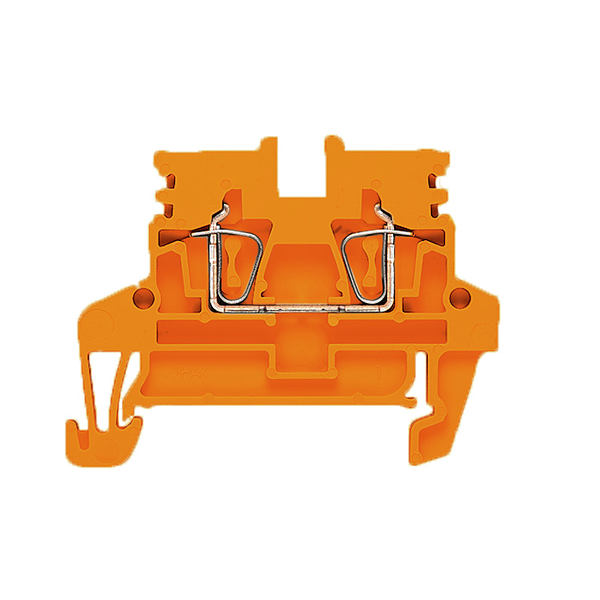

Weidmueller 1316880000
ZDU 2.5N OR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZDU 2.5N OR |
| Order No.: | 1316880000 |
| Version: | Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange |
| GTIN (EAN): | 4050118120950 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 50.5 mm |
| Height (inches): | 1.988 inch |
| Depth: | 38.5 mm |
| Depth (inches): | 1.516 inch |
| Depth including DIN rail: | 39 mm |
| Net weight: | 4.56 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | DEMKO15ATEX1467U |
| Certificate No. (IECEX): | IECEXULD15.0008U |
| Max. voltage (ATEX): | 440 V |
| Current (ATEX): | 22 A |
| Wire cross section max. (ATEX): | 4 mm² |
| Max. voltage (IECEX): | 440 V |
| Current (IECEX): | 22 A |
| Wire cross section max. (IECEX): | 4 mm² |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Tension-clamp connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | Yes |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Cross-section for connected wire, AWG, additional connection, max.: | AWG 12 |
| Cross-section for connected wire, AWG, additional connection, min.: | AWG 24 |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.05 mm² |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 25.5 mm |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 800 V |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | ZDU 2.5N OR |
| Order No.: | 1316880000 |
| Version: | Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange |
| GTIN (EAN): | 4050118120950 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 50.5 mm |
| Height (inches): | 1.988 inch |
| Depth: | 38.5 mm |
| Depth (inches): | 1.516 inch |
| Depth including DIN rail: | 39 mm |
| Net weight: | 4.56 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | DEMKO15ATEX1467U |
| Certificate No. (IECEX): | IECEXULD15.0008U |
| Max. voltage (ATEX): | 440 V |
| Current (ATEX): | 22 A |
| Wire cross section max. (ATEX): | 4 mm² |
| Max. voltage (IECEX): | 440 V |
| Current (IECEX): | 22 A |
| Wire cross section max. (IECEX): | 4 mm² |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Tension-clamp connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | Yes |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Cross-section for connected wire, AWG, additional connection, max.: | AWG 12 |
| Cross-section for connected wire, AWG, additional connection, min.: | AWG 24 |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.05 mm² |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 25.5 mm |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 800 V |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
