Product
Weidmueller
1306100000
KLIPPON POK 163609 EX
Request a Quote

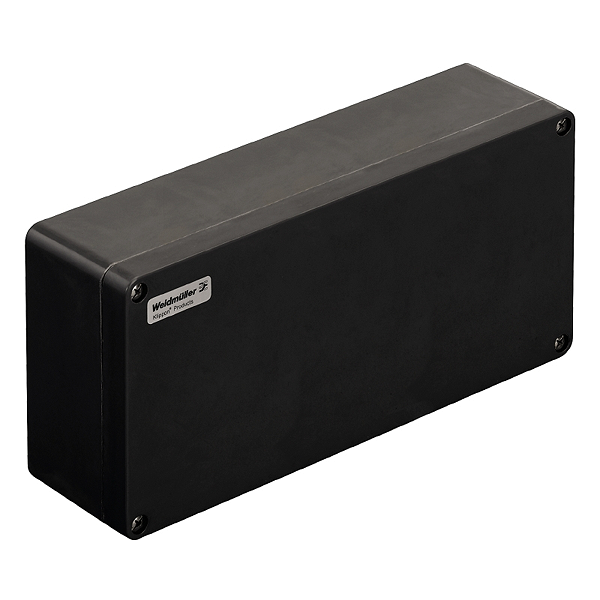

Image copyright: Weidmueller
Weidmueller 1306100000
KLIPPON POK 163609 EX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | KLIPPON POK 163609 EX |
| Order No.: | 1306100000 |
| Version: | Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 360 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, black |
| GTIN (EAN): | 4050118108262 |
| Qty.: | 1 pc(s). |
| Width: | 360 mm |
| Width (inches): | 14.173 inch |
| Height: | 160 mm |
| Height (inches): | 6.299 inch |
| Height of lowest version: | 90 mm |
| Depth: | 90 mm |
| Depth (inches): | 3.543 inch |
| Mounting dimension - width: | 340 mm |
| Mounting dimension - height: | 110 mm |
| Net weight: | 2,291 g |
| M12: | 11 |
| M16: | 6 |
| M20: | 4 |
| M25: | 2 |
| M32: | 2 |
| M40: | 1 |
| M12: | 11 |
| M16: | 6 |
| M20: | 4 |
| M25: | 2 |
| M32: | 2 |
| M40: | 1 |
| M12: | 45 ???New1??? |
| M16: | 36 |
| M20: | 20 |
| M25: | 8 |
| M32: | 6 |
| M40: | 5 |
| Certificate no. Terminal Box (ATEX): | IBExU13ATEX1004 X |
| Certificate no. empty enclosure (ATEX): | IBExU13ATEX1003 U |
| Certificate no. Terminal Box (IECEx): | IECEX IBE 13.0004X |
| Certificate no. empty enclosure (IECEx): | IECEx IBE 13.0003U |
| Certificate no. Terminal Box (EAC): | RU C-DE.ГБ08.B.01328 |
| Certificate no., empty enclosure (EAC): | RU C-DE.ГБ08.B.00472 |
| Certificate no. Terminal Box (AEx): | E223792 |
| Certificate no. empty enclosure (AEx): | E223792 |
| Certificate no. Terminal Box (KOSHA): | 16-AV4BO-0246X |
| Certificate No. (GERMLLOYD): | TAE00002R2 |
| Certificate No. (MARITREG): | 19.00109.272 |
| Certificate no. (cULus): | E256877 |
| Certificate No. (DNVGL): | TAE00002R2 |
| Areas of use: | Explosive risk zone, Harbour facilities, Machine construction, Process industry, Transportation |
| Installation advice: | Direct mounting, Mounting straps |
| Material thickness: | 5.99 mm |
| Material thickness of cover: | 5 mm |
| Material thickness of enclosure: | 5.99 mm |
| Standards: | DIN EN 62208 - Empty enclosure standard, IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Torque for lid screws: | 2.5 Nm |
| UL 94 flammability rating: | V-0 |
| Material: | Glass fibre-reinforced polyester |
| Seal material: | Silicone |
| Surface finish: | untreated, polished |
| Operating temperature, min.: | -55 °C |
| Operating temperature, max.: | 100 °C |
| Impact resistance: | 7 J ATEX version |
| Protection degree: | IP66 |
| Enclosure attachment: | Installation through the housing rear wall, Fixing lugs |
| Lid attachment: | Slotted/Phillips screws |
| Material: | Glass fibre-reinforced polyester |
| Material thickness: | 5.99 mm |
| Mounting dimension - height: | 110 mm |
| Mounting dimension - width: | 340 mm |
| Surface finish: | untreated, polished |
| WDU 10 / ZDU 10: | 1x29 |
| WDU 16 / ZDU 16: | 1x24 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 1x56 |
| WDU 4 / ZDU 4: | 1x47 |
| WDU 6 / ZDU 6: | 1x36 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | * |
| WDU 4 / ZDU 4: | * |
| ETIM 6.0: | EC002503 |
| ETIM 7.0: | EC002503 |
| eClass 9.0: | 27-18-05-02 |
| eClass 9.1: | 27-18-05-02 |
| eClass 10.0: | 27-18-05-02 |
| ROHS: | Conform |
| Type: | KLIPPON POK 163609 EX |
| Order No.: | 1306100000 |
| Version: | Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 360 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, black |
| GTIN (EAN): | 4050118108262 |
| Qty.: | 1 pc(s). |
| Width: | 360 mm |
| Width (inches): | 14.173 inch |
| Height: | 160 mm |
| Height (inches): | 6.299 inch |
| Height of lowest version: | 90 mm |
| Depth: | 90 mm |
| Depth (inches): | 3.543 inch |
| Mounting dimension - width: | 340 mm |
| Mounting dimension - height: | 110 mm |
| Net weight: | 2,291 g |
| M12: | 11 |
| M16: | 6 |
| M20: | 4 |
| M25: | 2 |
| M32: | 2 |
| M40: | 1 |
| M12: | 11 |
| M16: | 6 |
| M20: | 4 |
| M25: | 2 |
| M32: | 2 |
| M40: | 1 |
| M12: | 45 ???New1??? |
| M16: | 36 |
| M20: | 20 |
| M25: | 8 |
| M32: | 6 |
| M40: | 5 |
| Certificate no. Terminal Box (ATEX): | IBExU13ATEX1004 X |
| Certificate no. empty enclosure (ATEX): | IBExU13ATEX1003 U |
| Certificate no. Terminal Box (IECEx): | IECEX IBE 13.0004X |
| Certificate no. empty enclosure (IECEx): | IECEx IBE 13.0003U |
| Certificate no. Terminal Box (EAC): | RU C-DE.ГБ08.B.01328 |
| Certificate no., empty enclosure (EAC): | RU C-DE.ГБ08.B.00472 |
| Certificate no. Terminal Box (AEx): | E223792 |
| Certificate no. empty enclosure (AEx): | E223792 |
| Certificate no. Terminal Box (KOSHA): | 16-AV4BO-0246X |
| Certificate No. (GERMLLOYD): | TAE00002R2 |
| Certificate No. (MARITREG): | 19.00109.272 |
| Certificate no. (cULus): | E256877 |
| Certificate No. (DNVGL): | TAE00002R2 |
| Areas of use: | Explosive risk zone, Harbour facilities, Machine construction, Process industry, Transportation |
| Installation advice: | Direct mounting, Mounting straps |
| Material thickness: | 5.99 mm |
| Material thickness of cover: | 5 mm |
| Material thickness of enclosure: | 5.99 mm |
| Standards: | DIN EN 62208 - Empty enclosure standard, IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Torque for lid screws: | 2.5 Nm |
| UL 94 flammability rating: | V-0 |
| Material: | Glass fibre-reinforced polyester |
| Seal material: | Silicone |
| Surface finish: | untreated, polished |
| Operating temperature, min.: | -55 °C |
| Operating temperature, max.: | 100 °C |
| Impact resistance: | 7 J ATEX version |
| Protection degree: | IP66 |
| Enclosure attachment: | Installation through the housing rear wall, Fixing lugs |
| Lid attachment: | Slotted/Phillips screws |
| Material: | Glass fibre-reinforced polyester |
| Material thickness: | 5.99 mm |
| Mounting dimension - height: | 110 mm |
| Mounting dimension - width: | 340 mm |
| Surface finish: | untreated, polished |
| WDU 10 / ZDU 10: | 1x29 |
| WDU 16 / ZDU 16: | 1x24 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 1x56 |
| WDU 4 / ZDU 4: | 1x47 |
| WDU 6 / ZDU 6: | 1x36 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | * |
| WDU 4 / ZDU 4: | * |
| ETIM 6.0: | EC002503 |
| ETIM 7.0: | EC002503 |
| eClass 9.0: | 27-18-05-02 |
| eClass 9.1: | 27-18-05-02 |
| eClass 10.0: | 27-18-05-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 2.384 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
