Product
Weidmueller
1251220000
CP DC BUFFER 24V 20A
Request a Quote

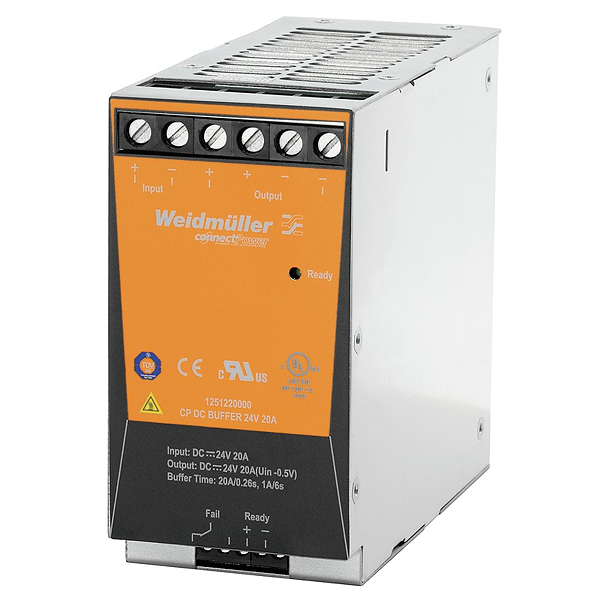

Image copyright: Weidmueller
Weidmueller 1251220000
CP DC BUFFER 24V 20A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CP DC BUFFER 24V 20A |
| Order No.: | 1251220000 |
| Version: | UPS control unit, 30 V, 24 V |
| GTIN (EAN): | 4050118043174 |
| Qty.: | 1 pc(s). |
| Width: | 66 |
| Width (inches): | 2.598 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 1,280 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E349964 |
| Connection system: | Screw connection |
| Input current: | 0…22 A |
| Input voltage, max.: | 30 V |
| Input voltage, min.: | 22.5 V |
| Max. approved input current: | 22 A |
| Rated input voltage: | 24 V DC |
| Surge protection: | 31 - 34 V (only at discharge) |
| Output current: | 20A |
| Output current, max.: | 22 A |
| Output voltage: | 24 V |
| Output voltage: | Corresponds to the input voltage |
| Overload protection: | ≥ 22 A (only at discharge) |
| Parallel connection option: | Yes, without diode module |
| Surge protection: | 31 - 34 V (only at discharge) |
| Buffer times: | 250 ms at 20 A, 6 s at 1 A |
| Clip-in foot: | metal |
| Degree of efficiency: | 95 % |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Operating temperature: | -25 °C...70 °C |
| Protection degree: | IP20 |
| Storage medium: | Internal condenser |
| Output current: | 20A |
| Noise emission in accordance with EN55032: | Class B |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD), EN 61000-4-3 and EN 61000-4-8 (fields), EN 61000-4-4 (burst) |
| Insulation voltage, input/output: | 1 kV |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Safety extra-low voltage: | EN 60950 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Status indicator: | Green LED |
| Status relay (max. load): | Input voltage OK (30 V AC/DC 2A), Ready for operation (24 V AC/DC 300 mA) |
| Certificate No. (cURus): | E349964 |
| ETIM 6.0: | EC002850 |
| ETIM 7.0: | EC002850 |
| eClass 9.0: | 27-04-06-92 |
| eClass 9.1: | 27-04-92-01 |
| eClass 10.0: | 27-04-06-92 |
| ROHS: | Conform |
| Type: | CP DC BUFFER 24V 20A |
| Order No.: | 1251220000 |
| Version: | UPS control unit, 30 V, 24 V |
| GTIN (EAN): | 4050118043174 |
| Qty.: | 1 pc(s). |
| Width: | 66 |
| Width (inches): | 2.598 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 1,280 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E349964 |
| Connection system: | Screw connection |
| Input current: | 0…22 A |
| Input voltage, max.: | 30 V |
| Input voltage, min.: | 22.5 V |
| Max. approved input current: | 22 A |
| Rated input voltage: | 24 V DC |
| Surge protection: | 31 - 34 V (only at discharge) |
| Output current: | 20A |
| Output current, max.: | 22 A |
| Output voltage: | 24 V |
| Output voltage: | Corresponds to the input voltage |
| Overload protection: | ≥ 22 A (only at discharge) |
| Parallel connection option: | Yes, without diode module |
| Surge protection: | 31 - 34 V (only at discharge) |
| Buffer times: | 250 ms at 20 A, 6 s at 1 A |
| Clip-in foot: | metal |
| Degree of efficiency: | 95 % |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Operating temperature: | -25 °C...70 °C |
| Protection degree: | IP20 |
| Storage medium: | Internal condenser |
| Output current: | 20A |
| Noise emission in accordance with EN55032: | Class B |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD), EN 61000-4-3 and EN 61000-4-8 (fields), EN 61000-4-4 (burst) |
| Insulation voltage, input/output: | 1 kV |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Safety extra-low voltage: | EN 60950 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Status indicator: | Green LED |
| Status relay (max. load): | Input voltage OK (30 V AC/DC 2A), Ready for operation (24 V AC/DC 300 mA) |
| Certificate No. (cURus): | E349964 |
| ETIM 6.0: | EC002850 |
| ETIM 7.0: | EC002850 |
| eClass 9.0: | 27-04-06-92 |
| eClass 9.1: | 27-04-92-01 |
| eClass 10.0: | 27-04-06-92 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.311 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
