Product
Weidmueller
1251070000
CP A BATTERY 24V DC3.4AH
Request a Quote
Image copyright: Weidmueller

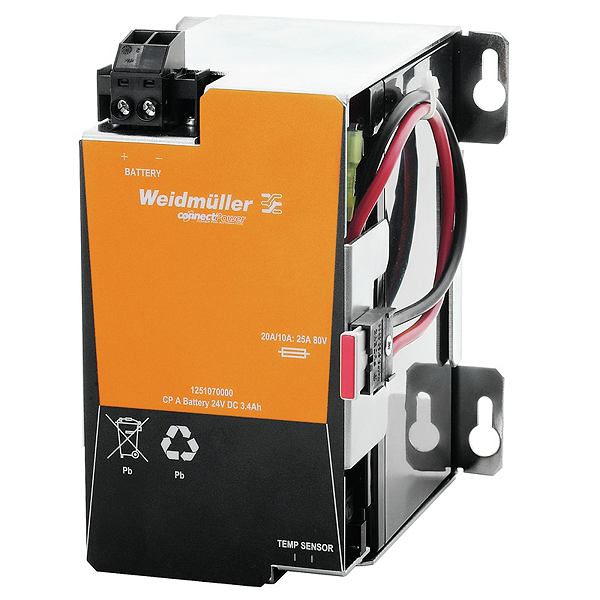

Weidmueller 1251070000
CP A BATTERY 24V DC3.4AH
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CP A BATTERY 24V DC3.4AH |
| Order No.: | 1251070000 |
| Version: | Battery |
| GTIN (EAN): | 4050118043105 |
| Qty.: | 1 pc(s). |
| Width: | 108 |
| Width (inches): | 4.252 inch |
| Height: | 144 mm |
| Height (inches): | 5.669 inch |
| Depth: | 137 mm |
| Depth (inches): | 5.394 inch |
| Net weight: | 3,478 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | 0 °C |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | -15 °C |
| Operating temperature: | 0 °C...40 °C |
| Ambient temperature: | 0°...+40°C (Charging); -15°…+50°C (Discharging) |
| Storage temperature: | -15 °C...40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Temperature probe: | NTC 100 kΩ |
| Charging current, max.: | 0.51 A |
| Nominal capacity: | 3.4 Ah |
| Rated input voltage: | 24 V DC |
| Buffer time 10A: | 11.3 min |
| Buffer time 20A: | 5 min |
| Output current, max.: | 25 A |
| Overload and short circuit protection: | 25 A fuse |
| Parallel connection option: | Yes |
| Protection against inverse voltage: | Yes |
| Temperature probe: | NTC 100 kΩ |
| Battery type: | Maintenance-free AGM lead-acid battery |
| Clip-in foot: | metal |
| Latest commissioning: | 9 months |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Operating life: | 6...9 years at 20°C |
| Operating temperature: | 0 °C...40 °C |
| Protection degree: | IP20 |
| Series switching capability: | No |
| Shock wall acc. to IEC 68227: | 30 g |
| Vibration DIN rail/wall in accordance with IEC 68-2-6: | 0.7 / 0.7 g |
| Protection class: | III, with no ground connection, for SELV |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 6 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Number of terminals: | 2 (+ / -) |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Number of terminals: | 2 |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.2 mm² |
| Wire connection method: | Pluggable screw connection |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 28 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.2 mm² |
| Certificate No. (GERMLLOYD): | 61934-14 |
| Certificate no. (cULus): | E349959 |
| ETIM 6.0: | EC002850 |
| ETIM 7.0: | EC002850 |
| eClass 9.0: | 27-04-06-92 |
| eClass 9.1: | 27-04-92-01 |
| eClass 10.0: | 27-04-06-92 |
| ROHS: | Conform |
| Type: | CP A BATTERY 24V DC3.4AH |
| Order No.: | 1251070000 |
| Version: | Battery |
| GTIN (EAN): | 4050118043105 |
| Qty.: | 1 pc(s). |
| Width: | 108 |
| Width (inches): | 4.252 inch |
| Height: | 144 mm |
| Height (inches): | 5.669 inch |
| Depth: | 137 mm |
| Depth (inches): | 5.394 inch |
| Net weight: | 3,478 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | 0 °C |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | -15 °C |
| Operating temperature: | 0 °C...40 °C |
| Ambient temperature: | 0°...+40°C (Charging); -15°…+50°C (Discharging) |
| Storage temperature: | -15 °C...40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Temperature probe: | NTC 100 kΩ |
| Charging current, max.: | 0.51 A |
| Nominal capacity: | 3.4 Ah |
| Rated input voltage: | 24 V DC |
| Buffer time 10A: | 11.3 min |
| Buffer time 20A: | 5 min |
| Output current, max.: | 25 A |
| Overload and short circuit protection: | 25 A fuse |
| Parallel connection option: | Yes |
| Protection against inverse voltage: | Yes |
| Temperature probe: | NTC 100 kΩ |
| Battery type: | Maintenance-free AGM lead-acid battery |
| Clip-in foot: | metal |
| Latest commissioning: | 9 months |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Operating life: | 6...9 years at 20°C |
| Operating temperature: | 0 °C...40 °C |
| Protection degree: | IP20 |
| Series switching capability: | No |
| Shock wall acc. to IEC 68227: | 30 g |
| Vibration DIN rail/wall in accordance with IEC 68-2-6: | 0.7 / 0.7 g |
| Protection class: | III, with no ground connection, for SELV |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 6 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Number of terminals: | 2 (+ / -) |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Number of terminals: | 2 |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.2 mm² |
| Wire connection method: | Pluggable screw connection |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 28 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.2 mm² |
| Certificate No. (GERMLLOYD): | 61934-14 |
| Certificate no. (cULus): | E349959 |
| ETIM 6.0: | EC002850 |
| ETIM 7.0: | EC002850 |
| eClass 9.0: | 27-04-06-92 |
| eClass 9.1: | 27-04-92-01 |
| eClass 10.0: | 27-04-06-92 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 3.87 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
