Product
Weidmueller
1222230000
CP M RM24
Request a Quote

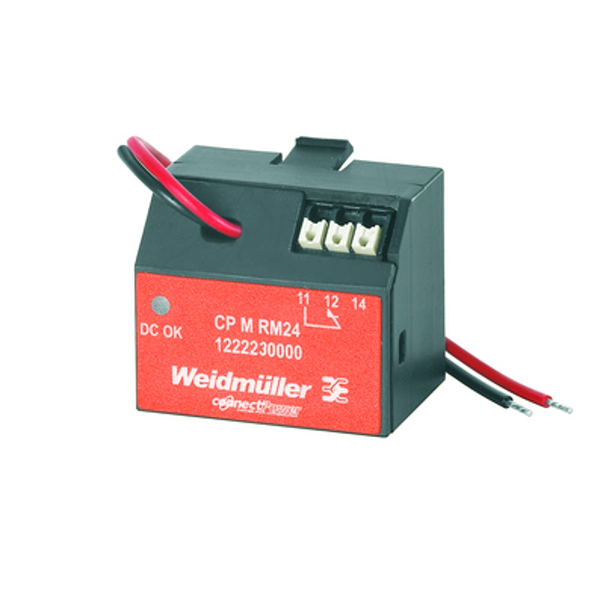

Image copyright: Weidmueller
Weidmueller 1222230000
CP M RM24
CP M RM24
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2016-06-30 |
| Type: | CP M RM24 |
| Order No.: | 1222230000 |
| Version: | Power supply, switch-mode power supply unit |
| GTIN (EAN): | 4050118005615 |
| Qty.: | 1 pc(s). |
| Width: | 33 mm |
| Width (inches): | 1.299 inch |
| Height: | 28 mm |
| Height (inches): | 1.102 inch |
| Depth: | 22 mm |
| Depth (inches): | 0.866 inch |
| Net weight: | 47 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E258476 |
| Connection system: | 10 cm cable with ferrules |
| DC input voltage range: | 18…30 V DC |
| Rated input voltage: | 24 V DC |
| Wire connection method: | PUSH IN |
| Connection system: | PUSH IN direct insertion |
| Switching thresholds: | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail |
| Voltage monitoring: | Yes |
| Wire connection method: | PUSH IN |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Plugged in to the front of the PRO-M power supply |
| Operating temperature: | -25 °C...70 °C |
| Protection degree: | IP20 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 1 g according to EN 50178 |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Connection system: | 10 cm cable with ferrules |
| Conductor cross-section, AWG/kcmil , max.: | 16 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 1.5 mm² |
| Conductor cross-section, flexible , min.: | 0.2 mm² |
| Conductor cross-section, rigid , max.: | 1.5 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | PUSH IN direct insertion |
| Number of terminals: | 3 (CO contacts) |
| Floating contact: | Yes |
| Relay on/off: | Output voltage > 21.6 V / < 20.4 V |
| Certificate No. (GERMLLOYD): | 94767-10 |
| Certificate No. (cURus): | E258476 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2016-06-30 |
| Type: | CP M RM24 |
| Order No.: | 1222230000 |
| Version: | Power supply, switch-mode power supply unit |
| GTIN (EAN): | 4050118005615 |
| Qty.: | 1 pc(s). |
| Width: | 33 mm |
| Width (inches): | 1.299 inch |
| Height: | 28 mm |
| Height (inches): | 1.102 inch |
| Depth: | 22 mm |
| Depth (inches): | 0.866 inch |
| Net weight: | 47 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E258476 |
| Connection system: | 10 cm cable with ferrules |
| DC input voltage range: | 18…30 V DC |
| Rated input voltage: | 24 V DC |
| Wire connection method: | PUSH IN |
| Connection system: | PUSH IN direct insertion |
| Switching thresholds: | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail |
| Voltage monitoring: | Yes |
| Wire connection method: | PUSH IN |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Plugged in to the front of the PRO-M power supply |
| Operating temperature: | -25 °C...70 °C |
| Protection degree: | IP20 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 1 g according to EN 50178 |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Connection system: | 10 cm cable with ferrules |
| Conductor cross-section, AWG/kcmil , max.: | 16 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 1.5 mm² |
| Conductor cross-section, flexible , min.: | 0.2 mm² |
| Conductor cross-section, rigid , max.: | 1.5 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | PUSH IN direct insertion |
| Number of terminals: | 3 (CO contacts) |
| Floating contact: | Yes |
| Relay on/off: | Output voltage > 21.6 V / < 20.4 V |
| Certificate No. (GERMLLOYD): | 94767-10 |
| Certificate No. (cURus): | E258476 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | 4050118005615 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
