Product
Weidmueller
1222210000
CP M DM20
Request a Quote

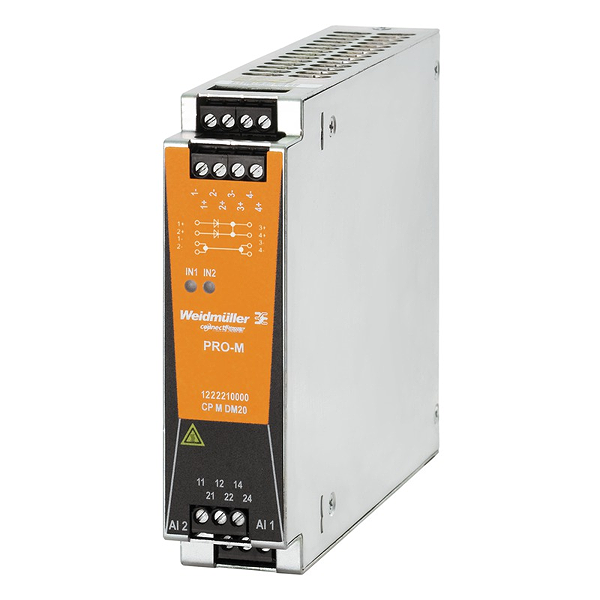

Image copyright: Weidmueller
Weidmueller 1222210000
CP M DM20
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Available until: | 2019-06-30 |
| Type: | CP M DM20 |
| Order No.: | 1222210000 |
| Version: | Diode module |
| GTIN (EAN): | 4050118005608 |
| Qty.: | 1 pc(s). |
| Width: | 34 mm |
| Width (inches): | 1.339 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 610 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| DC input voltage range: | 18…30 V DC |
| Input current: | 2 x 10 A or 1 x 20 A |
| Rated input voltage: | 24 V DC |
| Wire connection method: | Screw connection |
| Continous output current @ UNominal: | 24 A @ 45 °C, 22.5 A @ 55 °C, 15 A @ 70 °C |
| Nominal output current for Unom: | 20 A @ 60 °C |
| Output current, max.: | 24 A |
| Output voltage: | Voltage input - 0.7 V |
| Rated output voltage: | 24 V DC ± 1 % |
| Switching thresholds: | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail |
| Voltage monitoring: | Yes, In both inputs |
| Wire connection method: | Screw connection |
| Degree of efficiency: | > 97% @ 24 V Input voltage |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Protection degree: | IP20 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 1 g according to EN 50178 |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Number of terminals: | 4 (1+, 2+, 1-, 2-) |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Number of terminals: | 4 (3 +, 4 +, 3 -, 4 -) |
| Floating contact: | Yes |
| Certificate No. (GERMLLOYD): | 94767-10 |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Available until: | 2019-06-30 |
| Type: | CP M DM20 |
| Order No.: | 1222210000 |
| Version: | Diode module |
| GTIN (EAN): | 4050118005608 |
| Qty.: | 1 pc(s). |
| Width: | 34 mm |
| Width (inches): | 1.339 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 610 g |
| Humidity: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| DC input voltage range: | 18…30 V DC |
| Input current: | 2 x 10 A or 1 x 20 A |
| Rated input voltage: | 24 V DC |
| Wire connection method: | Screw connection |
| Continous output current @ UNominal: | 24 A @ 45 °C, 22.5 A @ 55 °C, 15 A @ 70 °C |
| Nominal output current for Unom: | 20 A @ 60 °C |
| Output current, max.: | 24 A |
| Output voltage: | Voltage input - 0.7 V |
| Rated output voltage: | 24 V DC ± 1 % |
| Switching thresholds: | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail |
| Voltage monitoring: | Yes, In both inputs |
| Wire connection method: | Screw connection |
| Degree of efficiency: | > 97% @ 24 V Input voltage |
| Humidity: | 5...95 %, no condensation |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Protection degree: | IP20 |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 1 g according to EN 50178 |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Number of terminals: | 4 (1+, 2+, 1-, 2-) |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Number of terminals: | 4 (3 +, 4 +, 3 -, 4 -) |
| Floating contact: | Yes |
| Certificate No. (GERMLLOYD): | 94767-10 |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.588 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
