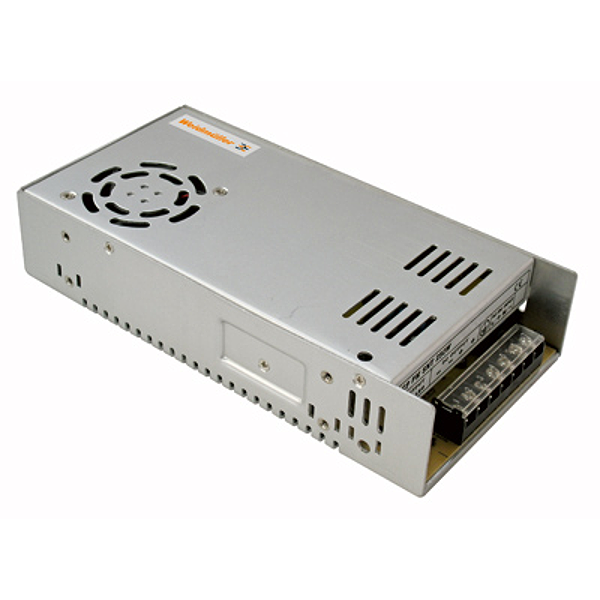

Image copyright: Weidmueller
Weidmueller 1202550000
CP E SNT 350W 24V 14.6A
Power supply, switch-mode power supply unit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CP E SNT 350W 24V 14.6A |
| Order No.: | 1202550000 |
| Version: | Power supply, switch-mode power supply unit |
| GTIN (EAN): | 4050118031614 |
| Qty.: | 1 pc(s). |
| Width: | 115 mm |
| Width (inches): | 4.528 inch |
| Height: | 49.5 mm |
| Height (inches): | 1.949 inch |
| Depth: | 230 mm |
| Depth (inches): | 9.055 inch |
| Net weight: | 1,030 g |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Ambient temperature: | -20°C...70°C (>50°C derating,refer derated curve); 70% rated load @ 70°C |
| Storage temperature: | -20 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E349964 |
| AC current consumption: | 3 A @ 230 V AC / 5.6 A @ 120 V AC |
| AC input voltage range: | 85...264 V AC |
| Connection system: | Screw connection |
| DC input voltage range: | 110…370 V DC |
| Frequency range AC: | 47...63 Hz |
| Input fuse (internal): | yes / max. 35A |
| Rated input voltage: | 100...240 V AC (wide-range input) |
| Recommended back-up fuse: | 6 A at 230 V AC, characteristic curve C |
| Control at 10...100% load: | 2% |
| Mains failure bridge-over time: | 20 ms |
| Output current: | 14.6 A@24 V DC |
| Output power: | 350 W |
| Output voltage: | ± 10% nominal output voltage tolerance, adjustable with potentiometer |
| Overload protection: | 120~150% Ikonst. of max. output power, automatic restart |
| Parallel connection option: | Recommended with diode module |
| Rated output voltage: | 24 V DC |
| Surge protection: | 28...32 V @ 24 V DC |
| AC failure bridging time @ Inom: | min. 20 ms |
| Ambient temperature: | -20°C...70°C (>50°C derating,refer derated curve); 70% rated load @ 70°C |
| Degree of efficiency: | 83 % @ 24 V DC |
| EMC standards: | EN 55011, EN 55022, EN 55024, EN 61000-6 /-2, -3 |
| Indication: | Operation, green LED |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Mounting position, installation notice: | Panel mount, screw fix |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Standards: | EN 60950 |
| Output current: | 14.6 A@24 V DC |
| Noise emission in accordance with EN55032: | Class A |
| electrical isolation, input-earth: | 2 kV |
| electrical isolation, input-output: | 3 kV |
| electrical isolation, output-earth: | 0.5 kV |
| Safety extra-low voltage: | SELV according to EN 60950 |
| Connection system: | Screw connection |
| Certificate No. (cURus): | E349964 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | CP E SNT 350W 24V 14.6A |
| Order No.: | 1202550000 |
| Version: | Power supply, switch-mode power supply unit |
| GTIN (EAN): | 4050118031614 |
| Qty.: | 1 pc(s). |
| Width: | 115 mm |
| Width (inches): | 4.528 inch |
| Height: | 49.5 mm |
| Height (inches): | 1.949 inch |
| Depth: | 230 mm |
| Depth (inches): | 9.055 inch |
| Net weight: | 1,030 g |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Ambient temperature: | -20°C...70°C (>50°C derating,refer derated curve); 70% rated load @ 70°C |
| Storage temperature: | -20 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E349964 |
| AC current consumption: | 3 A @ 230 V AC / 5.6 A @ 120 V AC |
| AC input voltage range: | 85...264 V AC |
| Connection system: | Screw connection |
| DC input voltage range: | 110…370 V DC |
| Frequency range AC: | 47...63 Hz |
| Input fuse (internal): | yes / max. 35A |
| Rated input voltage: | 100...240 V AC (wide-range input) |
| Recommended back-up fuse: | 6 A at 230 V AC, characteristic curve C |
| Control at 10...100% load: | 2% |
| Mains failure bridge-over time: | 20 ms |
| Output current: | 14.6 A@24 V DC |
| Output power: | 350 W |
| Output voltage: | ± 10% nominal output voltage tolerance, adjustable with potentiometer |
| Overload protection: | 120~150% Ikonst. of max. output power, automatic restart |
| Parallel connection option: | Recommended with diode module |
| Rated output voltage: | 24 V DC |
| Surge protection: | 28...32 V @ 24 V DC |
| AC failure bridging time @ Inom: | min. 20 ms |
| Ambient temperature: | -20°C...70°C (>50°C derating,refer derated curve); 70% rated load @ 70°C |
| Degree of efficiency: | 83 % @ 24 V DC |
| EMC standards: | EN 55011, EN 55022, EN 55024, EN 61000-6 /-2, -3 |
| Indication: | Operation, green LED |
| Max. perm. air humidity (operational): | 5 %…95 % RH |
| Mounting position, installation notice: | Panel mount, screw fix |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Standards: | EN 60950 |
| Output current: | 14.6 A@24 V DC |
| Noise emission in accordance with EN55032: | Class A |
| electrical isolation, input-earth: | 2 kV |
| electrical isolation, input-output: | 3 kV |
| electrical isolation, output-earth: | 0.5 kV |
| Safety extra-low voltage: | SELV according to EN 60950 |
| Connection system: | Screw connection |
| Certificate No. (cURus): | E349964 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
