Product
Weidmueller
1131740000
ZDLD 2.5-2N PE
Request a Quote

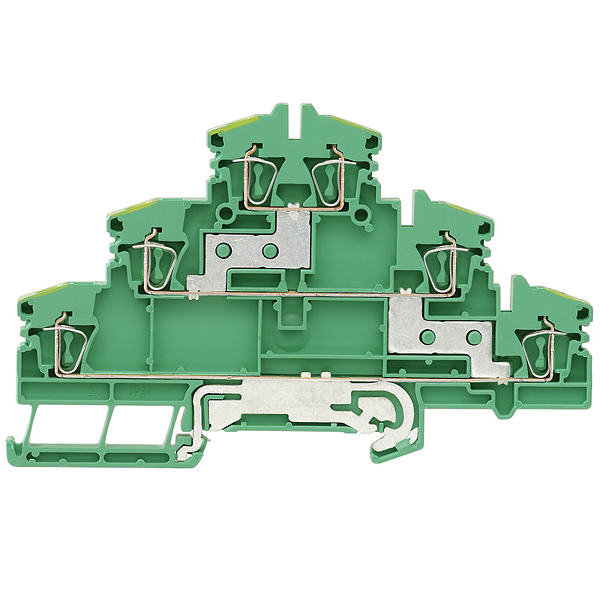

Image copyright: Weidmueller
Weidmueller 1131740000
ZDLD 2.5-2N PE
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZDLD 2.5-2N PE |
| Order No.: | 1131740000 |
| Version: | PE terminal, Tension-clamp connection, 2.5 mm², 500, 300 A (2.5 mm²), dark beige |
| GTIN (EAN): | 4032248922703 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 110.5 mm |
| Height (inches): | 4.35 inch |
| Depth: | 69 mm |
| Depth (inches): | 2.717 inch |
| Depth including DIN rail: | 70 mm |
| Net weight: | 26.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, With PE connection, One end without connector |
| Number of levels: | 3 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | Yes |
| PE connection: | Yes |
| Rail: | TS 35 |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1228250 |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.08 mm² |
| Number of connections: | 6 |
| Stripping length: | 10 mm |
| Type of connection: | Tension-clamp connection |
| Rated short-time current: | 300 A (2.5 mm²) |
| PEN function: | No |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 |
| Rated voltage to adjoining terminal: | 500 V |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Wire cross section max. (UR): | 12 AWG |
| Wire cross section min. (UR): | 26 AWG |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| ROHS: | Conform |
| Type: | ZDLD 2.5-2N PE |
| Order No.: | 1131740000 |
| Version: | PE terminal, Tension-clamp connection, 2.5 mm², 500, 300 A (2.5 mm²), dark beige |
| GTIN (EAN): | 4032248922703 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 110.5 mm |
| Height (inches): | 4.35 inch |
| Depth: | 69 mm |
| Depth (inches): | 2.717 inch |
| Depth including DIN rail: | 70 mm |
| Net weight: | 26.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, With PE connection, One end without connector |
| Number of levels: | 3 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | Yes |
| PE connection: | Yes |
| Rail: | TS 35 |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1228250 |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.08 mm² |
| Number of connections: | 6 |
| Stripping length: | 10 mm |
| Type of connection: | Tension-clamp connection |
| Rated short-time current: | 300 A (2.5 mm²) |
| PEN function: | No |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 |
| Rated voltage to adjoining terminal: | 500 V |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Wire cross section max. (UR): | 12 AWG |
| Wire cross section min. (UR): | 26 AWG |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.028 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
