Product
Weidmueller
1121120000
ZDU 6-2/D+
Request a Quote

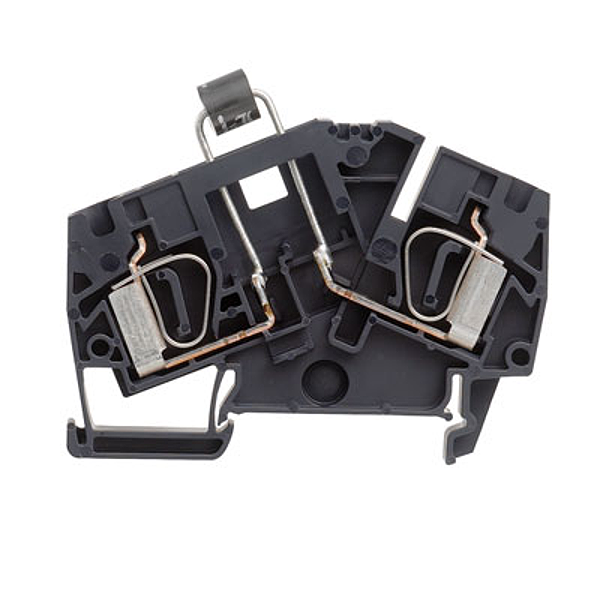

Image copyright: Weidmueller
Weidmueller 1121120000
ZDU 6-2/D+
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZDU 6-2/D+ |
| Order No.: | 1121120000 |
| Version: | Z-series, Component terminal, Feed-through terminal, Rated cross-section: 6 mm², Tension-clamp connection |
| GTIN (EAN): | 4032248902224 |
| Qty.: | 20 pc(s). |
| Width: | 8.1 mm |
| Width (inches): | 0.319 inch |
| Height: | 70 mm |
| Height (inches): | 2.756 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Net weight: | 19.93 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | graphite black |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, with diode, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Electronic component: | Diode |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component 1: | Diode |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Connection direction: | Inclined / angled |
| Number of connections: | 2 |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 5 A |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Product information: | The allowed continuous operating temperature must be observed |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| ROHS: | Conform |
| Type: | ZDU 6-2/D+ |
| Order No.: | 1121120000 |
| Version: | Z-series, Component terminal, Feed-through terminal, Rated cross-section: 6 mm², Tension-clamp connection |
| GTIN (EAN): | 4032248902224 |
| Qty.: | 20 pc(s). |
| Width: | 8.1 mm |
| Width (inches): | 0.319 inch |
| Height: | 70 mm |
| Height (inches): | 2.756 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Net weight: | 19.93 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | graphite black |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, with diode, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Electronic component: | Diode |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component 1: | Diode |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Connection direction: | Inclined / angled |
| Number of connections: | 2 |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 5 A |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Product information: | The allowed continuous operating temperature must be observed |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
