Product
Weidmueller
1085440000
THM MT30X 20/100 WS
Request a Quote

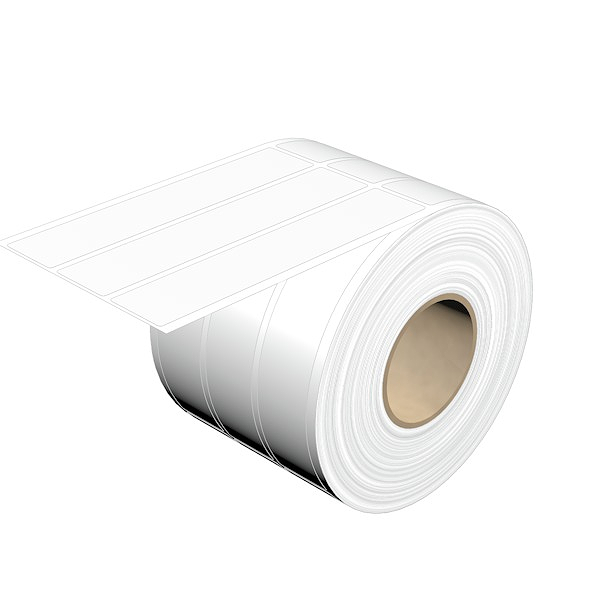

Image copyright: Weidmueller
Weidmueller 1085440000
THM MT30X 20/100 WS
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | THM MT30X 20/100 WS |
| Order No.: | 1085440000 |
| Version: | THM, Device markers, 100 x 20 mm, white |
| GTIN (EAN): | 4032248850891 |
| Qty.: | 1 pc(s). |
| Width: | 20 mm |
| Width (inches): | 0.787 inch |
| Height: | 100 mm |
| Height (inches): | 3.937 inch |
| Depth: | 0.08 mm |
| Depth (inches): | 0.003 inch |
| Net weight: | 538 g |
| Adhesive: | Acrylate adhesive |
| Approval acc. to UL 969: | Yes |
| Colour: | white |
| Halogen: | No |
| Material: | Polyester |
| Material colour according to resistance code: | 9 |
| Number per roll: | 1,500 |
| Operating temperature range: | -40...150 °C |
| Printing method: | Thermotransfer |
| UL 94 flammability rating: | V-0 |
| Version: | Self-adhesive, halogen-free |
| Width: | 20 mm |
| ETIM 6.0: | EC001288 |
| ETIM 7.0: | EC001288 |
| eClass 9.0: | 27-40-06-29 |
| eClass 9.1: | 27-40-06-29 |
| eClass 10.0: | 27-40-06-29 |
| UNSPSC: | 55-12-16-00 |
| ROHS: | Conform |
| Type: | THM MT30X 20/100 WS |
| Order No.: | 1085440000 |
| Version: | THM, Device markers, 100 x 20 mm, white |
| GTIN (EAN): | 4032248850891 |
| Qty.: | 1 pc(s). |
| Width: | 20 mm |
| Width (inches): | 0.787 inch |
| Height: | 100 mm |
| Height (inches): | 3.937 inch |
| Depth: | 0.08 mm |
| Depth (inches): | 0.003 inch |
| Net weight: | 538 g |
| Adhesive: | Acrylate adhesive |
| Approval acc. to UL 969: | Yes |
| Colour: | white |
| Halogen: | No |
| Material: | Polyester |
| Material colour according to resistance code: | 9 |
| Number per roll: | 1,500 |
| Operating temperature range: | -40...150 °C |
| Printing method: | Thermotransfer |
| UL 94 flammability rating: | V-0 |
| Version: | Self-adhesive, halogen-free |
| Width: | 20 mm |
| ETIM 6.0: | EC001288 |
| ETIM 7.0: | EC001288 |
| eClass 9.0: | 27-40-06-29 |
| eClass 9.1: | 27-40-06-29 |
| eClass 10.0: | 27-40-06-29 |
| UNSPSC: | 55-12-16-00 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.549 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
