1084780000
PTL 6/10/STB
Request a Quote
Image copyright: Weidmueller

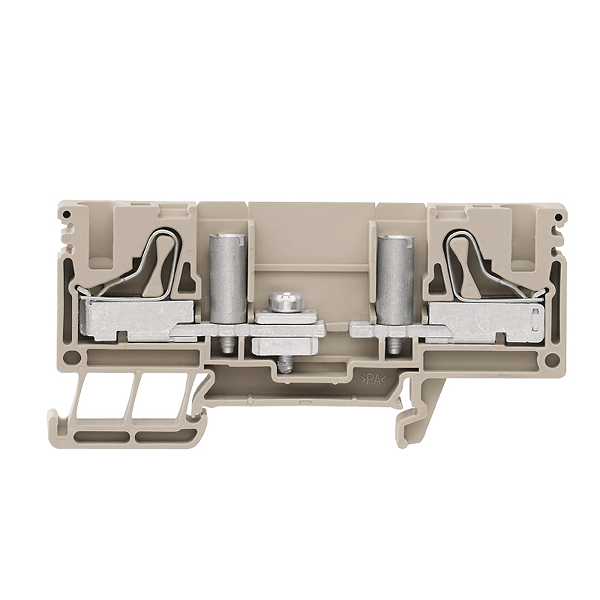

Weidmueller 1084780000
PTL 6/10/STB
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2021-12-31 |
| Type: | PTL 6/10/STB |
| Order No.: | 1084780000 |
| Version: | Test-disconnect terminal, PUSH IN, 6 mm², 800 V, 57 A, sliding, dark beige |
| GTIN (EAN): | 4032248847549 |
| Qty.: | 50 pc(s). |
| Width: | 8.1 mm |
| Width (inches): | 0.319 inch |
| Height: | 82 mm |
| Height (inches): | 3.228 inch |
| Depth: | 39.6 mm |
| Depth (inches): | 1.559 inch |
| Depth including DIN rail: | 40.35 mm |
| Net weight: | 25 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, Special terminal longitudinal isolator, With sockets, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 14 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Cross-disconnect: | without |
| Slitting: | sliding |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 800 V |
| Rated current: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Current size B (cURus): | 45 A |
| Current size C (cURus): | 45 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| Wire cross section max. (cURus): | 8 AWG |
| Wire cross section min. (cURus): | 16 AWG |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2021-12-31 |
| Type: | PTL 6/10/STB |
| Order No.: | 1084780000 |
| Version: | Test-disconnect terminal, PUSH IN, 6 mm², 800 V, 57 A, sliding, dark beige |
| GTIN (EAN): | 4032248847549 |
| Qty.: | 50 pc(s). |
| Width: | 8.1 mm |
| Width (inches): | 0.319 inch |
| Height: | 82 mm |
| Height (inches): | 3.228 inch |
| Depth: | 39.6 mm |
| Depth (inches): | 1.559 inch |
| Depth including DIN rail: | 40.35 mm |
| Net weight: | 25 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, Special terminal longitudinal isolator, With sockets, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 14 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Cross-disconnect: | without |
| Slitting: | sliding |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 800 V |
| Rated current: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Current size B (cURus): | 45 A |
| Current size C (cURus): | 45 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| Wire cross section max. (cURus): | 8 AWG |
| Wire cross section min. (cURus): | 16 AWG |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| ROHS: | Conform |
