Weidmueller
1057260000
WQV 4/7
Request a Quote

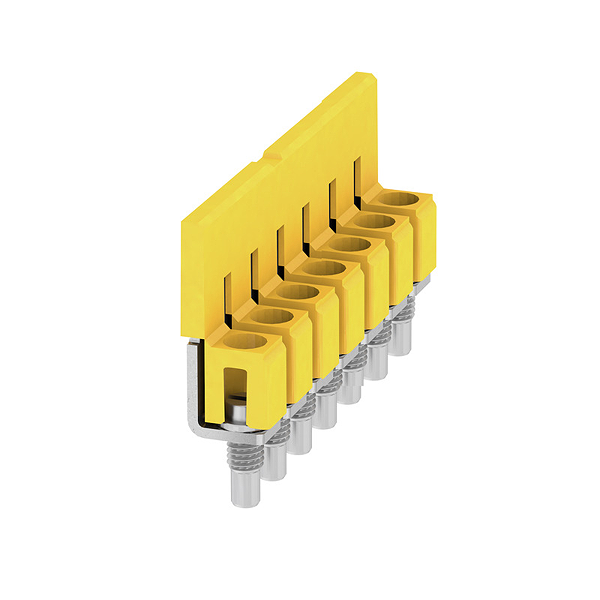

Image copyright: Weidmueller
Weidmueller 1057260000
WQV 4/7
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WQV 4/7 |
| Order No.: | 1057260000 |
| Version: | W-Series, Cross-connector, For the terminals, Number of poles: 7 |
| GTIN (EAN): | 4008190092139 |
| Qty.: | 10 pc(s). |
| Width: | 7.6 mm |
| Width (inches): | 0.299 inch |
| Height: | 41.1 mm |
| Height (inches): | 1.618 inch |
| Depth: | 18 mm |
| Depth (inches): | 0.709 inch |
| Net weight: | 8.4 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | PA 66 |
| Colour: | yellow |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Number of cross-connected terminals: | 7 |
| Rated current, 2-pole: | 41 A |
| Rated current, multi-pole: | 41 A |
| Tightening torque range for fixing screw: | 0.5...1.0 Nm |
| Type: | Cross-connector |
| Pitch in mm (P): | 6.1 mm |
| Rated current: | 41 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WQV 4/7 |
| Order No.: | 1057260000 |
| Version: | W-Series, Cross-connector, For the terminals, Number of poles: 7 |
| GTIN (EAN): | 4008190092139 |
| Qty.: | 10 pc(s). |
| Width: | 7.6 mm |
| Width (inches): | 0.299 inch |
| Height: | 41.1 mm |
| Height (inches): | 1.618 inch |
| Depth: | 18 mm |
| Depth (inches): | 0.709 inch |
| Net weight: | 8.4 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | PA 66 |
| Colour: | yellow |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Number of cross-connected terminals: | 7 |
| Rated current, 2-pole: | 41 A |
| Rated current, multi-pole: | 41 A |
| Tightening torque range for fixing screw: | 0.5...1.0 Nm |
| Type: | Cross-connector |
| Pitch in mm (P): | 6.1 mm |
| Rated current: | 41 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
