Weidmueller
1052660000
ZTA ZDK 2.5
Request a Quote

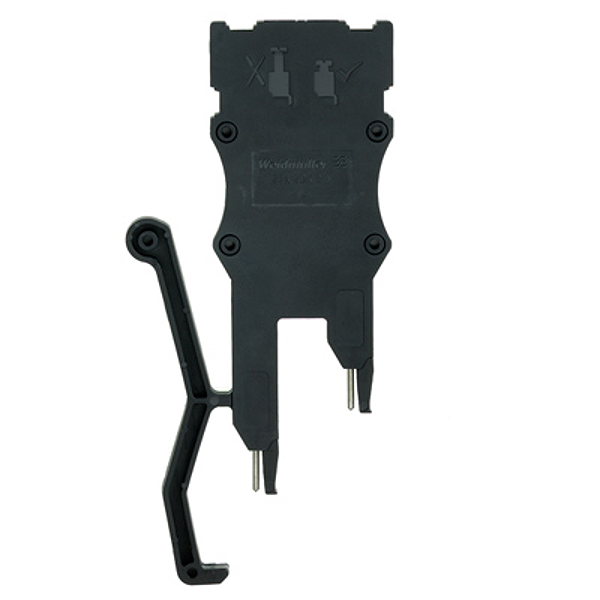

Image copyright: Weidmueller
Weidmueller 1052660000
ZTA ZDK 2.5
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZTA ZDK 2.5 |
| Order No.: | 1052660000 |
| Version: | Accessories, Test adapter |
| GTIN (EAN): | 4032248847891 |
| Qty.: | 5 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 35.6 mm |
| Height (inches): | 1.402 inch |
| Depth: | 110.7 mm |
| Depth (inches): | 4.358 inch |
| Net weight: | 22.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| With snap-in pegs: | No |
| Number of connections: | 1 |
| Tightening torque, max.: | 0.3 Nm |
| Tightening torque, min.: | 0.3 Nm |
| ETIM 6.0: | EC002555 |
| ETIM 7.0: | EC002555 |
| eClass 9.0: | 27-14-11-48 |
| eClass 9.1: | 27-14-11-48 |
| eClass 10.0: | 27-14-11-48 |
| ROHS: | Conform |
| Type: | ZTA ZDK 2.5 |
| Order No.: | 1052660000 |
| Version: | Accessories, Test adapter |
| GTIN (EAN): | 4032248847891 |
| Qty.: | 5 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 35.6 mm |
| Height (inches): | 1.402 inch |
| Depth: | 110.7 mm |
| Depth (inches): | 4.358 inch |
| Net weight: | 22.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| With snap-in pegs: | No |
| Number of connections: | 1 |
| Tightening torque, max.: | 0.3 Nm |
| Tightening torque, min.: | 0.3 Nm |
| ETIM 6.0: | EC002555 |
| ETIM 7.0: | EC002555 |
| eClass 9.0: | 27-14-11-48 |
| eClass 9.1: | 27-14-11-48 |
| eClass 10.0: | 27-14-11-48 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.022 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
