1051970000
ZP 4/1AN
Request a Quote
Image copyright: Weidmueller

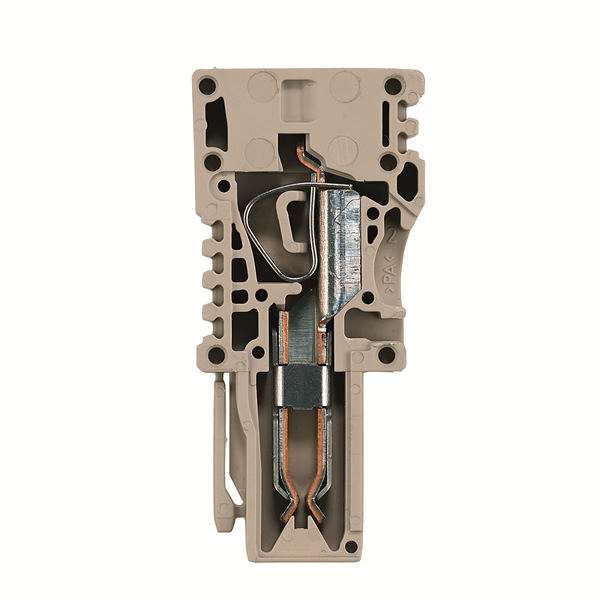

Weidmueller 1051970000
ZP 4/1AN
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZP 4/1AN |
| Order No.: | 1051970000 |
| Version: | Z-series, Plug-in connector, Direct mounting |
| GTIN (EAN): | 4032248792351 |
| Qty.: | 50 pc(s). |
| Width: | 6.5 mm |
| Width (inches): | 0.256 inch |
| Height: | 22.5 mm |
| Height (inches): | 0.886 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Net weight: | 6.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Set of connectors, pluggable, Tension-clamp connection |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Plugged |
| Certificate No. (CSA): | 200039-1720292 |
| Current size C (CSA): | 28 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 10 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 12 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 10 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 800 V |
| Rated current: | 32 A |
| Current at maximum wires: | 32 A |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 10 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 10 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size C (cURus): | 28 A |
| Voltage size C (cURus): | 600 V |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| ROHS: | Conform |
| Type: | ZP 4/1AN |
| Order No.: | 1051970000 |
| Version: | Z-series, Plug-in connector, Direct mounting |
| GTIN (EAN): | 4032248792351 |
| Qty.: | 50 pc(s). |
| Width: | 6.5 mm |
| Width (inches): | 0.256 inch |
| Height: | 22.5 mm |
| Height (inches): | 0.886 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Net weight: | 6.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Set of connectors, pluggable, Tension-clamp connection |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Plugged |
| Certificate No. (CSA): | 200039-1720292 |
| Current size C (CSA): | 28 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 10 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 12 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 10 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 800 V |
| Rated current: | 32 A |
| Current at maximum wires: | 32 A |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 10 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 10 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size C (cURus): | 28 A |
| Voltage size C (cURus): | 600 V |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.006 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
