Product
Weidmueller
1051260000
WTA 5/1
Request a Quote

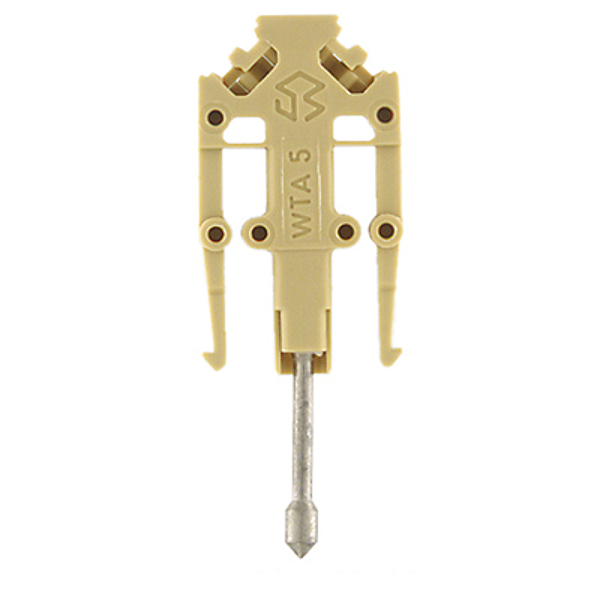

Image copyright: Weidmueller
Weidmueller 1051260000
WTA 5/1
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WTA 5/1 |
| Order No.: | 1051260000 |
| Version: | W-Series, Test adapter |
| GTIN (EAN): | 4008190161897 |
| Qty.: | 25 pc(s). |
| Width: | 5 mm |
| Width (inches): | 0.197 inch |
| Height: | 17 mm |
| Height (inches): | 0.669 inch |
| Depth: | 30.3 mm |
| Depth (inches): | 1.193 inch |
| Net weight: | 1.98 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | PA 66 |
| Colour: | beige |
| UL 94 flammability rating: | V-2 |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 1 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 1 mm² |
| Installation advice: | Direct mounting |
| With snap-in pegs: | No |
| Number of connections: | 1 |
| Stripping length: | 8 mm |
| Type of connection: | Crimp connection |
| Wire connection cross section, finely stranded, max.: | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1 mm² |
| Wire connection cross-section, solid core, max.: | 1 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Pitch in mm (P): | 5 mm |
| Height with TS 35: | 68.2 mm |
| Rated cross-section: | 0.75 mm² |
| Rated voltage: | 250 V |
| Rated current: | 6 A |
| Volume resistance according to IEC 60947-7-x: | 3.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.29 W |
| ETIM 6.0: | EC002555 |
| ETIM 7.0: | EC002555 |
| eClass 9.0: | 27-14-11-48 |
| eClass 9.1: | 27-14-11-48 |
| eClass 10.0: | 27-14-11-48 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WTA 5/1 |
| Order No.: | 1051260000 |
| Version: | W-Series, Test adapter |
| GTIN (EAN): | 4008190161897 |
| Qty.: | 25 pc(s). |
| Width: | 5 mm |
| Width (inches): | 0.197 inch |
| Height: | 17 mm |
| Height (inches): | 0.669 inch |
| Depth: | 30.3 mm |
| Depth (inches): | 1.193 inch |
| Net weight: | 1.98 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | PA 66 |
| Colour: | beige |
| UL 94 flammability rating: | V-2 |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 1 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 1 mm² |
| Installation advice: | Direct mounting |
| With snap-in pegs: | No |
| Number of connections: | 1 |
| Stripping length: | 8 mm |
| Type of connection: | Crimp connection |
| Wire connection cross section, finely stranded, max.: | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1 mm² |
| Wire connection cross-section, solid core, max.: | 1 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Pitch in mm (P): | 5 mm |
| Height with TS 35: | 68.2 mm |
| Rated cross-section: | 0.75 mm² |
| Rated voltage: | 250 V |
| Rated current: | 6 A |
| Volume resistance according to IEC 60947-7-x: | 3.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.29 W |
| ETIM 6.0: | EC002555 |
| ETIM 7.0: | EC002555 |
| eClass 9.0: | 27-14-11-48 |
| eClass 9.1: | 27-14-11-48 |
| eClass 10.0: | 27-14-11-48 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.002 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
