Product
Weidmueller
1050100000
WAP 16+35 WTW 2.5-10
Request a Quote
Image copyright: Weidmueller

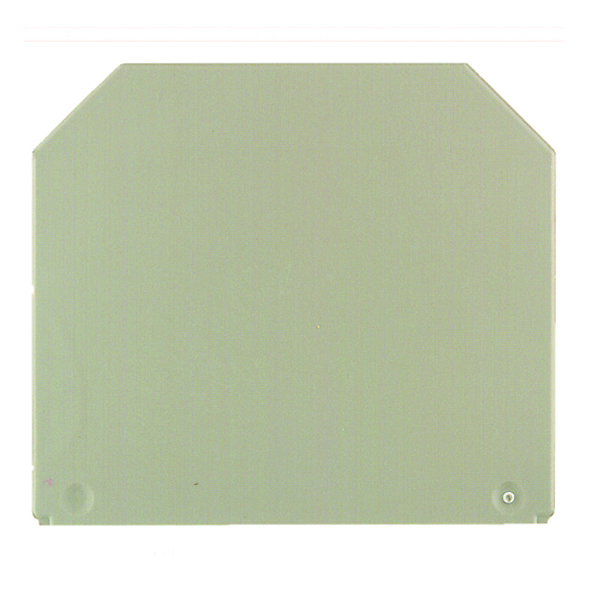

Weidmueller 1050100000
WAP 16+35 WTW 2.5-10
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WAP 16+35 WTW 2.5-10 |
| Order No.: | 1050100000 |
| Version: | W-Series, End plate, Seperation plate |
| GTIN (EAN): | 4008190079901 |
| Qty.: | 20 pc(s). |
| Width: | 1.5 mm |
| Width (inches): | 0.059 inch |
| Height: | 56 mm |
| Height (inches): | 2.205 inch |
| Depth: | 49.5 mm |
| Depth (inches): | 1.949 inch |
| Net weight: | 4.618 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | End plate |
| Installation advice: | Direct mounting |
| Snap-on: | No |
| TS 35 offset: | 81.5 mm |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.0: | 27-14-11-33 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
| Type: | WAP 16+35 WTW 2.5-10 |
| Order No.: | 1050100000 |
| Version: | W-Series, End plate, Seperation plate |
| GTIN (EAN): | 4008190079901 |
| Qty.: | 20 pc(s). |
| Width: | 1.5 mm |
| Width (inches): | 0.059 inch |
| Height: | 56 mm |
| Height (inches): | 2.205 inch |
| Depth: | 49.5 mm |
| Depth (inches): | 1.949 inch |
| Net weight: | 4.618 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | End plate |
| Installation advice: | Direct mounting |
| Snap-on: | No |
| TS 35 offset: | 81.5 mm |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.0: | 27-14-11-33 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.005 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
